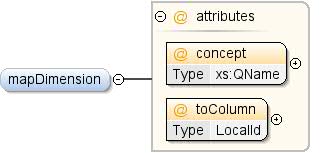

元素:SliceTableMapping / mapDimension
命名空间 | http://schemas.google.com/dspl/2010 | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
注释 | 包含切片维度值的列 ID 的映射。如果包含 Slice 维度值的表列的概念 ID 为列 ID,则可以省略此映射。如果引用的概念来自外部数据集,且列 ID 与概念的本地 ID(即不带前缀)匹配,则可以省略映射。 | ||||||||||||||||||
图示 | |||||||||||||||||||
属性 |
|
||||||||||||||||||
属性 |
|
||||||||||||||||||
来源 |
<xs:element name="mapDimension" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>A mapping to the id of the column that contains the values of a dimension of the slice. This mapping may be omitted if the table column that contains the slice dimension values has the concept id as its column id. If the referenced concept comes from an external dataset, the mapping may be omitted if the id of the column matches the local id of the concept (i.e., without the prefix).</xs:documentation> </xs:annotation> <xs:complexType> <xs:attribute name="concept" type="xs:QName" use="required"> <xs:annotation> <xs:documentation>The id of the mapped dimension concept.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="toColumn" type="LocalId" use="required"> <xs:annotation> <xs:documentation>The id of the mapped table column.</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> </xs:element> |
元素:SliceTableMapping / mapMetric
命名空间 | http://schemas.google.com/dspl/2010 | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
注释 | 包含切片指标值的列的 ID 的映射。如果包含 Slice 指标值的表列的概念 ID 为列 ID,则可以省略此映射。如果引用的概念来自外部数据集,且列 ID 与概念的本地 ID(即不带前缀)匹配,则可以省略映射。 | ||||||||||||||||||
图示 | |||||||||||||||||||
属性 |
|
||||||||||||||||||
属性 |
|
||||||||||||||||||
来源 |
<xs:element name="mapMetric" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>A mapping to the id of the column that contains the values of a metric of the slice. This mapping may be omitted if the table column that contains the slice metric values has the concept id as its column id. If the referenced concept comes from an external dataset, the mapping may be omitted if the id of the column matches the local id of the concept (i.e., without the prefix).</xs:documentation> </xs:annotation> <xs:complexType> <xs:attribute name="concept" type="xs:QName" use="required"> <xs:annotation> <xs:documentation>The id of the mapped metric concept.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="toColumn" type="LocalId" use="required"> <xs:annotation> <xs:documentation>The id of the mapped table column.</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> </xs:element> |

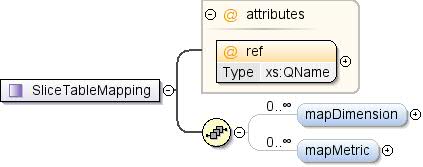

复杂类型:SliceTableMapping
命名空间 | http://schemas.google.com/dspl/2010 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
注释 | 一个映射,表示为 Slice 提供数据的表。 | ||||||||||||
图示 | |||||||||||||
使用方数量 |
|
||||||||||||
模型 | mapDimension*、mapMetric* | ||||||||||||
儿童 | mapDimension、mapMetric | ||||||||||||
属性 |
|
||||||||||||
来源 |
<xs:complexType name="SliceTableMapping"> <xs:annotation> <xs:documentation>A mapping to a table that provides data for a slice.</xs:documentation> </xs:annotation> <xs:sequence> <xs:element name="mapDimension" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>A mapping to the id of the column that contains the values of a dimension of the slice. This mapping may be omitted if the table column that contains the slice dimension values has the concept id as its column id. If the referenced concept comes from an external dataset, the mapping may be omitted if the id of the column matches the local id of the concept (i.e., without the prefix).</xs:documentation> </xs:annotation> <xs:complexType> <xs:attribute name="concept" type="xs:QName" use="required"> <xs:annotation> <xs:documentation>The id of the mapped dimension concept.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="toColumn" type="LocalId" use="required"> <xs:annotation> <xs:documentation>The id of the mapped table column.</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> </xs:element> <xs:element name="mapMetric" minOccurs="0" maxOccurs="unbounded"> <xs:annotation> <xs:documentation>A mapping to the id of the column that contains the values of a metric of the slice. This mapping may be omitted if the table column that contains the slice metric values has the concept id as its column id. If the referenced concept comes from an external dataset, the mapping may be omitted if the id of the column matches the local id of the concept (i.e., without the prefix).</xs:documentation> </xs:annotation> <xs:complexType> <xs:attribute name="concept" type="xs:QName" use="required"> <xs:annotation> <xs:documentation>The id of the mapped metric concept.</xs:documentation> </xs:annotation> </xs:attribute> <xs:attribute name="toColumn" type="LocalId" use="required"> <xs:annotation> <xs:documentation>The id of the mapped table column.</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> </xs:element> </xs:sequence> <xs:attribute name="ref" type="xs:QName" use="required"> <xs:annotation> <xs:documentation>The identifier of the table that contains data for the slice.</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> |
属性:SliceTableMapping / mapDimension / @concept
命名空间 | 没有命名空间 | ||
---|---|---|---|
注释 | 映射维度概念的 ID。 | ||
类型 | xs:QName | ||
属性 |
|
||
使用方数量 |
|
||
来源 |
<xs:attribute name="concept" type="xs:QName" use="required"> <xs:annotation> <xs:documentation>The id of the mapped dimension concept.</xs:documentation> </xs:annotation> </xs:attribute> |
属性:SliceTableMapping / mapDimension / @toColumn
命名空间 | 没有命名空间 | |||
---|---|---|---|---|
注释 | 映射表列的 ID。 | |||
类型 | 本地 ID | |||
属性 |
|
|||
属性 |
|
|||
使用方数量 |
|
|||
来源 |
<xs:attribute name="toColumn" type="LocalId" use="required"> <xs:annotation> <xs:documentation>The id of the mapped table column.</xs:documentation> </xs:annotation> </xs:attribute> |
属性:SliceTableMapping / mapMetric / @concept
命名空间 | 没有命名空间 | ||
---|---|---|---|
注释 | 映射的指标概念的 ID。 | ||
类型 | xs:QName | ||
属性 |
|
||
使用方数量 |
|
||
来源 |
<xs:attribute name="concept" type="xs:QName" use="required"> <xs:annotation> <xs:documentation>The id of the mapped metric concept.</xs:documentation> </xs:annotation> </xs:attribute> |
属性:SliceTableMapping / mapMetric / @toColumn
命名空间 | 没有命名空间 | |||
---|---|---|---|---|
注释 | 映射表列的 ID。 | |||
类型 | 本地 ID | |||
属性 |
|
|||
属性 |
|
|||
使用方数量 |
|
|||
来源 |
<xs:attribute name="toColumn" type="LocalId" use="required"> <xs:annotation> <xs:documentation>The id of the mapped table column.</xs:documentation> </xs:annotation> </xs:attribute> |
属性:SliceTableMapping / @ref
命名空间 | 没有命名空间 | ||
---|---|---|---|
注释 | 包含 Slice 数据的表的标识符。 | ||
类型 | xs:QName | ||
属性 |
|
||
使用方数量 |
|
||
来源 |
<xs:attribute name="ref" type="xs:QName" use="required"> <xs:annotation> <xs:documentation>The identifier of the table that contains data for the slice.</xs:documentation> </xs:annotation> </xs:attribute> |
