यह पेज और इसके लिंक किए गए सबपेज, DSPL एक्सएमएल स्कीमा को दस्तावेज़ के तौर पर पेश करते हैं.
यह सामग्री उन बेहतर उपयोगकर्ताओं के लिए है जिन्हें भाषा की निचले लेवल वाली जानकारी को समझना है. ज़्यादातर उपयोगकर्ताओं के लिए, डेवलपर गाइड का कॉन्टेंट डीएसपीएल डेटासेट बनाने और उसमें बदलाव करने के लिए काफ़ी होना चाहिए.
पूरा एक्सएमएल स्कीमा
DSPL कोड साइट पर डाउनलोड करने के लिए, XSD फ़ॉर्मैट में उपलब्ध है.
एलिमेंट: dspl
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
DPL की खास बातें, डेटासेट के बारे में बताती हैं. डेटासेट की पहचान उसके नेमस्पेस से की जाती है. डेटासेट में ये एलिमेंट शामिल होते हैं: टेबल: डेटासेट में बताए गए कॉन्सेप्ट और स्लाइस का डेटा - कॉन्सेप्ट: उपयोगकर्ता की बताई गई परिभाषाएं और डेटासेट में इस्तेमाल की गई स्लाइस - स्लाइस: विषय में मौजूद डाइमेंशन और मेट्रिक के कॉम्बिनेशन - विषय: डेटासेट के सिद्धांतों को व्यवस्थित करने के लिए, क्रम के हिसाब से लेबल का इस्तेमाल किया जाता है |

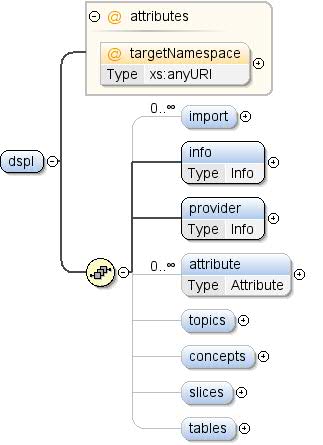

डायग्राम |
|
प्रॉपर्टी |
|
मॉडल |
इंपोर्ट करें , जानकारी , सेवा देने वाली कंपनी ,
विशेषता* , विषय{0,1} , कॉन्सेप्ट{0,1} , स्लाइस{0,1} , टेबल{0,1} |
बच्चे |
एट्रिब्यूट, कॉन्सेप्ट, इंपोर्ट करें,
जानकारी, सेवा देने वाले, स्लाइस,
टेबल, विषय |
इंस्टेंस |
<dspl targetNamespace="">
<import location="" namespace="">{0,unbounded}</import>
<info>{1,1}</info>
<provider>{1,1}</provider>
<attribute concept="" id="">{0,unbounded}</attribute>
<topics>{0,1}</topics>
<concepts>{0,1}</concepts>
<slices>{0,1}</slices>
<tables>{0,1}</tables>
</dspl>
|
विशेषताएं |
सवाल का नाम |
टाइप |
तारीख की तय सीमा |
डिफ़ॉल्ट |
आपके कैंपेन के लक्ष्यों के हिसाब से किन लोगों के ग्राहक में बदलने की संभावना ज़्यादा है, यह जानने के लिए |
ब्यौरा |
targetNamespace |
एक्सएस:कोई भी यूआरआई |
|
|
ज़रूरी नहीं |
हर डेटासेट में एक टारगेट नेमस्पेस हो सकता है. टारगेट
नेमस्पेस, एक यूआरआई है जो डेटासेट की खास तौर पर पहचान करता है. एक्सएमएल में
नेमस्पेस के इस्तेमाल के बारे में ज़्यादा जानकारी के लिए, यह देखें:
http://www.w3.org/TR/आरईसी-एक्सएमएल-नाम/ अगर कोई targetNamespace नहीं दिया गया है, तो डेटासेट इंपोर्ट करने पर एक नेमस्पेस
जनरेट होगा. |
|
सोर्स |
<xs:element name="dspl">
<xs:annotation>
<xs:documentation>A DSPL specification describes a dataset. A dataset is
identified by its namespace. A dataset is comprised of the
following elements:
- Tables: Data for the concepts and slices defined in the
dataset
- Concepts: User-specified definitions and structures used in
the dataset
- Slices: Combinations of dimensions and metrics present in
the dataset
- Topics: Hierarchical labels used to organise the concepts of
the dataset</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="import" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Import directive for external datasets -- modeled after
the XML Schema import directive. In order to use
elements defined in an external dataset, the external
dataset must be referenced using an import directive.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="namespace" use="required">
<xs:annotation>
<xs:documentation>The namespace of the imported dataset, specified as
a URI. A prefix must be associated with this
namespace before its contents can be referenced. See
[XML Namespaces] for more information about the use
of namespaces and prefixes in XML.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="location" use="optional">
<xs:annotation>
<xs:documentation>An optional location where the definition of the
imported dataset can be found, specified as a
URL. If the location is omitted, the system
processing this DSPL dataset must already know the
imported dataset.
Implementation note: The Google dataset importer
ignores the location attribute. Any imported dataset
must be known by the Google importer beforehand.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="info" type="Info" minOccurs="1">
<xs:annotation>
<xs:documentation>General information about the dataset.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="provider" type="Info">
<xs:annotation>
<xs:documentation>General information about the dataset provider.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="attribute" type="Attribute" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Attribute associated with the dataset.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="topics" minOccurs="0">
<xs:annotation>
<xs:documentation>A hierarchy of topics used to organize the contents of
the dataset. The order in which topics are given is
meaningful and should be respected by visualizations
that displays these topics.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="topic" type="Topic" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="concepts" minOccurs="0">
<xs:annotation>
<xs:documentation>A list of concepts defined in this dataset.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="concept" type="Concept" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="slices" minOccurs="0">
<xs:annotation>
<xs:documentation>A list of slices defined in this dataset.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="slice" type="Slice" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="tables" minOccurs="0">
<xs:annotation>
<xs:documentation>A list of tables defined in this dataset.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="table" type="Table" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="targetNamespace" type="xs:anyURI" use="optional">
<xs:annotation>
<xs:documentation>Each dataset may provide a target namespace. The
target namespace is a URI that uniquely identifies the
dataset. For more information about the use of namespaces in XML,
see:
http://www.w3.org/TR/REC-xml-names/
If no targetNamespace is provided, then a namespace will be
generated when the dataset is imported.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
|
एलिमेंट: dspl / इंपोर्ट
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
बाहरी डेटासेट के लिए इंपोर्ट करने का निर्देश -- एक्सएमएल स्कीमा इंपोर्ट डायरेक्टिव की मदद से बनाया गया. किसी बाहरी डेटासेट में दिए गए एलिमेंट का
इस्तेमाल करने के लिए, बाहरी डेटासेट को इंपोर्ट
करने वाले निर्देश का इस्तेमाल करके ही रेफ़र किया जाना चाहिए. |
डायग्राम |
|
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
कम से कम |
0 |
ज़्यादा से ज़्यादा: |
अनबाउंड |
|
विशेषताएं |
सवाल का नाम |
टाइप |
तारीख की तय सीमा |
डिफ़ॉल्ट |
आपके कैंपेन के लक्ष्यों के हिसाब से किन लोगों के ग्राहक में बदलने की संभावना ज़्यादा है, यह जानने के लिए |
ब्यौरा |
स्थान |
|
|
|
ज़रूरी नहीं |
ऐसी वैकल्पिक जगह जहां इंपोर्ट किए गए डेटासेट की परिभाषा देखी जा सकती है, जिसे यूआरएल के तौर पर दिखाया जाता है. अगर जगह को खाली छोड़ दिया जाता है, तो सिस्टम को इस डीएसपीएल डेटासेट को प्रोसेस करने वाले सिस्टम को, पहले से ही इंपोर्ट किए गए डेटासेट की जानकारी होनी चाहिए. लागू करने की जानकारी: Google डेटासेट इंपोर्ट करने वाला, जगह की विशेषता पर ध्यान नहीं देता है. इंपोर्ट किए गए किसी भी डेटासेट के बारे में
Google के इंपोर्टर को पहले से जानकारी होनी चाहिए. |
नेमस्पेस |
|
|
|
इसे भरना ज़रूरी है |
इंपोर्ट किए गए डेटासेट का नेमस्पेस, जिसे यूआरआई के तौर पर
बताया गया है. इस नाम स्थान की सामग्री का संदर्भ देने से पहले, प्रीफ़िक्स को इससे जोड़ा जाना चाहिए. एक्सएमएल में नेमस्पेस और प्रीफ़िक्स के इस्तेमाल के बारे में ज़्यादा जानने के लिए, [एक्सएमएल नेमस्पेस] देखें. |
|
सोर्स |
<xs:element name="import" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Import directive for external datasets -- modeled after
the XML Schema import directive. In order to use
elements defined in an external dataset, the external
dataset must be referenced using an import directive.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="namespace" use="required">
<xs:annotation>
<xs:documentation>The namespace of the imported dataset, specified as
a URI. A prefix must be associated with this
namespace before its contents can be referenced. See
[XML Namespaces] for more information about the use
of namespaces and prefixes in XML.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="location" use="optional">
<xs:annotation>
<xs:documentation>An optional location where the definition of the
imported dataset can be found, specified as a
URL. If the location is omitted, the system
processing this DSPL dataset must already know the
imported dataset.
Implementation note: The Google dataset importer
ignores the location attribute. Any imported dataset
must be known by the Google importer beforehand.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
|
एलिमेंट: dspl / जानकारी
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
डेटासेट के बारे में सामान्य जानकारी. |
डायग्राम |
|
टाइप |
जानकारी |
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
कम से कम |
1 |
|
मॉडल |
नाम , ब्यौरा{0,1} , url{0,1} |
बच्चे |
ब्यौरा, नाम, url |
इंस्टेंस |
<info>
<name>{1,1}</name>
<description>{0,1}</description>
<url>{0,1}</url>
</info>
|
सोर्स |
<xs:element name="info" type="Info" minOccurs="1">
<xs:annotation>
<xs:documentation>General information about the dataset.</xs:documentation>
</xs:annotation>
</xs:element>
|
एलिमेंट: dspl / सेवा देने वाली कंपनी
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
डेटासेट देने वाली कंपनी के बारे में सामान्य जानकारी. |
डायग्राम |
|
टाइप |
जानकारी |
प्रॉपर्टी |
|
मॉडल |
नाम , ब्यौरा{0,1} , url{0,1} |
बच्चे |
ब्यौरा, नाम, url |
इंस्टेंस |
<provider>
<name>{1,1}</name>
<description>{0,1}</description>
<url>{0,1}</url>
</provider>
|
सोर्स |
<xs:element name="provider" type="Info">
<xs:annotation>
<xs:documentation>General information about the dataset provider.</xs:documentation>
</xs:annotation>
</xs:element>
|
एलिमेंट: dspl / एट्रिब्यूट
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
डेटासेट से जुड़ा एट्रिब्यूट. |
डायग्राम |
|
टाइप |
एट्रिब्यूट |
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
कम से कम |
0 |
ज़्यादा से ज़्यादा: |
अनबाउंड |
|
मॉडल |
info{0,1} , type{0,1} , (value*
| conceptValue{0,1}) |
बच्चे |
conceptValue, जानकारी, टाइप,
वैल्यू |
इंस्टेंस |
<attribute concept="" id="">
<info>{0,1}</info>
<type format="" ref="">{0,1}</type>
</attribute>
|
विशेषताएं |
सवाल का नाम |
टाइप |
तारीख की तय सीमा |
डिफ़ॉल्ट |
आपके कैंपेन के लक्ष्यों के हिसाब से किन लोगों के ग्राहक में बदलने की संभावना ज़्यादा है, यह जानने के लिए |
ब्यौरा |
कॉन्सेप्ट |
xs:सवाल का नाम |
|
|
ज़रूरी नहीं |
एक सिद्धांत का संदर्भ जो एट्रिब्यूट की वैल्यू से मेल खाता है. अगर एट्रिब्यूट किसी टाइप के बारे में बताता है, तो उसका
रेफ़रंस किए गए कॉन्सेप्ट के टाइप से मेल खाना चाहिए. बाहरी
कॉन्सेप्ट का रेफ़रंस
"prefix:other_concept_id" होना चाहिए. इसमें "प्रीफ़िक्स", बाहरी डेटासेट के नेमस्पेस के लिए इस्तेमाल किया जाने वाला प्रीफ़िक्स है (एक्सएमएल नेमस्पेस देखें). |
आईडी |
स्थानीय आईडी |
|
|
ज़रूरी नहीं |
कॉन्सेप्ट एट्रिब्यूट का आईडी. यह आइडेंटिफ़ायर,
पूरे एट्रिब्यूट और प्रॉपर्टी में, यूनीक होना चाहिए. अगर कॉन्सेप्ट एट्रिब्यूट की जानकारी दी गई है, तो हो सकता है कि आईडी को नज़रअंदाज़ किया जाए. ऐसी स्थिति में, आईडी को साफ़ तौर पर रेफ़रंस कॉन्सेप्ट के स्थानीय नाम की वैल्यू के साथ बनाया जाता है. उदाहरण के लिए, <attribute
concept="unit:currency />
<attribute id="currency"
concept="unit:currency /> के बराबर है |
|
सोर्स |
<xs:element name="attribute" type="Attribute" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Attribute associated with the dataset.</xs:documentation>
</xs:annotation>
</xs:element>
|
एलिमेंट: dspl / विषय
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
कॉन्टेंट का क्रम, जिसे डेटासेट के कॉन्टेंट को व्यवस्थित करने के लिए इस्तेमाल किया जाता है. विषयों को किस क्रम में दिया गया है वह मायने रखता है. ऐसे विज़ुअलाइज़ेशन का भी ध्यान रखना चाहिए जिनमें इन विषयों को दिखाया गया हो. |
डायग्राम |
|
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
कम से कम |
0 |
|
मॉडल |
विषय+ |
बच्चे |
विषय |
इंस्टेंस |
<topics>
<topic id="" parentTopic="">{1,unbounded}</topic>
</topics>
|
सोर्स |
<xs:element name="topics" minOccurs="0">
<xs:annotation>
<xs:documentation>A hierarchy of topics used to organize the contents of
the dataset. The order in which topics are given is
meaningful and should be respected by visualizations
that displays these topics.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="topic" type="Topic" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
|
एलिमेंट: dspl / विषय / विषय
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
डायग्राम |
|
टाइप |
विषय |
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
ज़्यादा से ज़्यादा: |
अनबाउंड |
|
मॉडल |
जानकारी , विषय* |
बच्चे |
जानकारी, विषय |
इंस्टेंस |
<topic id="" parentTopic="">
<info>{1,1}</info>
<topic id="" parentTopic="">{0,unbounded}</topic>
</topic>
|
विशेषताएं |
सवाल का नाम |
टाइप |
तारीख की तय सीमा |
डिफ़ॉल्ट |
आपके कैंपेन के लक्ष्यों के हिसाब से किन लोगों के ग्राहक में बदलने की संभावना ज़्यादा है, यह जानने के लिए |
ब्यौरा |
आईडी |
आईडी |
|
|
इसे भरना ज़रूरी है |
डेटासेट में विषय का यूनीक आइडेंटिफ़ायर. |
parentTopic |
xs:सवाल का नाम |
|
|
ज़रूरी नहीं |
अगर इस विषय का पैरंट विषय है, तो उसका आईडी.
पैरंट टॉपिक को उन विषयों के लिए तय नहीं किया जा सकता जो दूसरे विषयों के साथ इनलाइन किए गए हों. |
|
सोर्स |
<xs:element name="topic" type="Topic" maxOccurs="unbounded"/>
|
एलिमेंट: dspl / कॉन्सेप्ट
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
इस डेटासेट में बताए गए कॉन्सेप्ट की सूची. |
डायग्राम |
|
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
कम से कम |
0 |
|
मॉडल |
concept+ |
बच्चे |
कॉन्सेप्ट |
इंस्टेंस |
<concepts>
<concept extends="" id="">{1,unbounded}</concept>
</concepts>
|
सोर्स |
<xs:element name="concepts" minOccurs="0">
<xs:annotation>
<xs:documentation>A list of concepts defined in this dataset.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="concept" type="Concept" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
|
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
डायग्राम |
|
टाइप |
कॉन्सेप्ट |
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
ज़्यादा से ज़्यादा: |
अनबाउंड |
|
मॉडल |
info , topic* , type{0,1} ,
attribute* , प्रॉपर्टी* , defaultValue{0,1} , टेबल{0,1} |
बच्चे |
attribute, defaultValue, जानकारी,
प्रॉपर्टी, टेबल, विषय,
प्रकार |
इंस्टेंस |
<concept extends="" id="">
<info>{1,1}</info>
<topic ref="">{0,unbounded}</topic>
<type ref="">{0,1}</type>
<attribute concept="" id="">{0,unbounded}</attribute>
<property concept="" id="" isMapping="false" isParent="false">{0,unbounded}</property>
<defaultValue>{0,1}</defaultValue>
<table ref="">{0,1}</table>
</concept>
|
विशेषताएं |
सवाल का नाम |
टाइप |
तारीख की तय सीमा |
डिफ़ॉल्ट |
आपके कैंपेन के लक्ष्यों के हिसाब से किन लोगों के ग्राहक में बदलने की संभावना ज़्यादा है, यह जानने के लिए |
ब्यौरा |
एक्सटेंडेड |
xs:सवाल का नाम |
|
|
ज़रूरी नहीं |
इस सिद्धांत का खास पहचानकर्ता, जिसे यह सिद्धांत बताता है. बताया गया सिद्धांत, उसी डेटासेट में या बाहर से दिखाया जा सकता है. जैसे, किसी दूसरे डेटासेट में. किसी बाहरी
कॉन्सेप्ट का रेफ़रंस "prefix:other_concept_id" फ़ॉर्म में होना चाहिए. इसमें "प्रीफ़िक्स", बाहरी डेटासेट के नेमस्पेस के लिए इस्तेमाल किया जाने वाला प्रीफ़िक्स है. एक्सएमएल नेमस्पेस देखें. |
आईडी |
आईडी |
|
|
इसे भरना ज़रूरी है |
कॉन्सेप्ट का यूनीक आइडेंटिफ़ायर, जो डेटासेट में
दुनिया भर में यूनीक होना चाहिए. |
|
सोर्स |
<xs:element name="concept" type="Concept" maxOccurs="unbounded"/>
|
एलिमेंट: dspl / स्लाइस
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
इस डेटासेट में बताई गई स्लाइस की सूची. |
डायग्राम |
|
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
कम से कम |
0 |
|
मॉडल |
स्लाइस+ |
बच्चे |
स्लाइस |
इंस्टेंस |
<slices>
<slice id="">{1,unbounded}</slice>
</slices>
|
सोर्स |
<xs:element name="slices" minOccurs="0">
<xs:annotation>
<xs:documentation>A list of slices defined in this dataset.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="slice" type="Slice" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
|
एलिमेंट: dspl / स्लाइस / स्लाइस
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
डायग्राम |
|
टाइप |
स्लाइस |
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
ज़्यादा से ज़्यादा: |
अनबाउंड |
|
मॉडल |
info{0,1} , डाइमेंशन+ , मेट्रिक+
, टेबल |
बच्चे |
डाइमेंशन, जानकारी, मेट्रिक,
टेबल |
इंस्टेंस |
<slice id="">
<info>{0,1}</info>
<dimension concept="">{1,unbounded}</dimension>
<metric concept="">{1,unbounded}</metric>
<table ref="">{1,1}</table>
</slice>
|
विशेषताएं |
सवाल का नाम |
टाइप |
तारीख की तय सीमा |
डिफ़ॉल्ट |
आपके कैंपेन के लक्ष्यों के हिसाब से किन लोगों के ग्राहक में बदलने की संभावना ज़्यादा है, यह जानने के लिए |
ब्यौरा |
आईडी |
आईडी |
|
|
इसे भरना ज़रूरी है |
स्लाइस का यूनीक आइडेंटिफ़ायर. |
|
सोर्स |
<xs:element name="slice" type="Slice" maxOccurs="unbounded"/>
|
एलिमेंट: dspl / टेबल
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
इस डेटासेट में दी गई टेबल की सूची. |
डायग्राम |
|
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
कम से कम |
0 |
|
मॉडल |
टेबल+ |
बच्चे |
टेबल |
इंस्टेंस |
<tables>
<table id="">{1,unbounded}</table>
</tables>
|
सोर्स |
<xs:element name="tables" minOccurs="0">
<xs:annotation>
<xs:documentation>A list of tables defined in this dataset.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="table" type="Table" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
|
एलिमेंट: dspl / टेबल / टेबल
नाम-स्थान |
http://schemas.google.com/dspl/2010 |
डायग्राम |
|
टाइप |
टेबल |
प्रॉपर्टी |
कॉन्टेंट: |
जटिल |
ज़्यादा से ज़्यादा: |
अनबाउंड |
|
मॉडल |
info{0,1} , कॉलम+ , डेटा{0,1} |
बच्चे |
कॉलम, डेटा, जानकारी |
इंस्टेंस |
<table id="">
<info>{0,1}</info>
<column format="" id="" type="">{1,unbounded}</column>
<data>{0,1}</data>
</table>
|
विशेषताएं |
सवाल का नाम |
टाइप |
तारीख की तय सीमा |
डिफ़ॉल्ट |
आपके कैंपेन के लक्ष्यों के हिसाब से किन लोगों के ग्राहक में बदलने की संभावना ज़्यादा है, यह जानने के लिए |
ब्यौरा |
आईडी |
आईडी |
|
|
इसे भरना ज़रूरी है |
डेटासेट में मौजूद टेबल का यूनीक आइडेंटिफ़ायर. |
|
सोर्स |
<xs:element name="table" type="Table" maxOccurs="unbounded"/>
|
एट्रिब्यूट: dspl / import / @namespace
नाम-स्थान |
कोई नेमस्पेस नहीं |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
इंपोर्ट किए गए डेटासेट का नेमस्पेस, जिसे यूआरआई के तौर पर बताया गया है. किसी कॉन्टेंट के बारे में जानकारी पाने से पहले, इस नेमस्पेस से प्रीफ़िक्स जोड़ना ज़रूरी है. एक्सएमएल में नेमस्पेस और प्रीफ़िक्स के इस्तेमाल के बारे में ज़्यादा जानने के लिए, [एक्सएमएल नेमस्पेस] देखें. |
प्रॉपर्टी |
इस्तेमाल करें: |
इसे भरना ज़रूरी है |
|
इस्तेमाल करने वाले |
|
सोर्स |
<xs:attribute name="namespace" use="required">
<xs:annotation>
<xs:documentation>The namespace of the imported dataset, specified as
a URI. A prefix must be associated with this
namespace before its contents can be referenced. See
[XML Namespaces] for more information about the use
of namespaces and prefixes in XML.</xs:documentation>
</xs:annotation>
</xs:attribute>
|
एट्रिब्यूट: dspl / import / @location
नाम-स्थान |
कोई नेमस्पेस नहीं |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
ऐसी वैकल्पिक जगह जहां इंपोर्ट किए गए डेटासेट की परिभाषा देखी जा सकती है, जिसे यूआरएल के तौर पर दिखाया जाता है. अगर जगह को छोड़ दिया जाता है, तो
इस डीएसपीएल डेटासेट को प्रोसेस करने वाले सिस्टम को, इंपोर्ट किए गए
डेटासेट की पहले से जानकारी होनी चाहिए. लागू करने की जानकारी: Google डेटासेट इंपोर्ट करने वाला,
जगह की विशेषता को अनदेखा करता है. इंपोर्ट किए गए किसी भी डेटासेट के बारे में Google के इंपोर्टर को पहले से जानकारी होनी चाहिए. |
प्रॉपर्टी |
इस्तेमाल करें: |
ज़रूरी नहीं |
|
इस्तेमाल करने वाले |
|
सोर्स |
<xs:attribute name="location" use="optional">
<xs:annotation>
<xs:documentation>An optional location where the definition of the
imported dataset can be found, specified as a
URL. If the location is omitted, the system
processing this DSPL dataset must already know the
imported dataset.
Implementation note: The Google dataset importer
ignores the location attribute. Any imported dataset
must be known by the Google importer beforehand.</xs:documentation>
</xs:annotation>
</xs:attribute>
|
एट्रिब्यूट: dspl / @targetNamespace
नाम-स्थान |
कोई नेमस्पेस नहीं |
वीडियो के ऊपर टेक्स्ट, लिंक वगैरह |
हर डेटासेट में एक टारगेट नेमस्पेस हो सकता है. टारगेट
नेमस्पेस, एक यूआरआई है जो डेटासेट की खास तौर पर पहचान करता है. एक्सएमएल में
नेमस्पेस के इस्तेमाल के बारे में ज़्यादा जानकारी के लिए, यह देखें:
http://www.w3.org/TR/आरईसी-एक्सएमएल-नाम/ अगर कोई targetNamespace नहीं दिया गया है, तो
डेटासेट इंपोर्ट करने पर एक नेमस्पेस जनरेट होगा. |
टाइप |
एक्सएस:कोई भी यूआरआई |
प्रॉपर्टी |
इस्तेमाल करें: |
ज़रूरी नहीं |
|
इस्तेमाल करने वाले |
|
सोर्स |
<xs:attribute name="targetNamespace" type="xs:anyURI" use="optional">
<xs:annotation>
<xs:documentation>Each dataset may provide a target namespace. The
target namespace is a URI that uniquely identifies the
dataset. For more information about the use of namespaces in XML,
see:
http://www.w3.org/TR/REC-xml-names/
If no targetNamespace is provided, then a namespace will be
generated when the dataset is imported.</xs:documentation>
</xs:annotation>
</xs:attribute>
|
oXygen XML Editor का इस्तेमाल करके बनाया गया.
