This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using AdMob Mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an Android app.
Supported integrations and ad formats
The mediation adapter for Pangle has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
App open | 1 |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native |
Requirements
- Android API level 21 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Pangle UI
添加新应用
转到 Applications(应用)标签页,然后点击 Add App(添加应用)按钮。
选择要为其创建应用的操作系统,并填写表单的其余部分。然后点击提交。
记下您应用的应用 ID。
创建广告展示位置
创建应用后,点击添加按钮创建广告展示位置。
出价
选择广告格式和广告展示位置名称,然后选择应用内出价作为定价类型。填写表单的其余部分,然后点击提交。
创建广告展示位置后,请记下广告展示位置 ID。
瀑布
选择广告格式和广告展示位置名称,然后选择全局每千次展示费用作为定价类型。填写表单的其余部分,然后点击提交。
创建广告展示位置后,请记下广告展示位置 ID。
找到 Pangle Reporting API 密钥
出价
出价集成不需要执行此步骤。
瀑布
记下页面左下角的 User ID。
依次点击集成 > SDK 和 API > Pangle Reporting API 2.0。记下角色 ID 和安全密钥。
开启测试模式
请按照 Pangle 的如何添加测试广告指南中的说明启用 Pangle 测试广告。
Step 2: Set up Pangle demand in AdMob UI
กำหนดการตั้งค่าสื่อกลางสำหรับหน่วยโฆษณา
คุณต้องเพิ่ม Pangle ลงในการกำหนดค่าสื่อกลางของหน่วยโฆษณา
ก่อนอื่น ให้ลงชื่อเข้าใช้บัญชี AdMob จากนั้นไปที่แท็บสื่อกลาง หากมีกลุ่มสื่อกลางที่ต้องการแก้ไขอยู่แล้ว ให้คลิกชื่อกลุ่มสื่อกลางนั้นเพื่อแก้ไข แล้วข้ามไปที่หัวข้อเพิ่ม Pangle เป็นแหล่งที่มาของโฆษณา
หากต้องการสร้างกลุ่มสื่อกลางใหม่ ให้เลือกสร้างกลุ่มสื่อกลาง
ป้อนรูปแบบโฆษณาและแพลตฟอร์ม แล้วคลิกต่อไป
ตั้งชื่อกลุ่มสื่อกลาง แล้วเลือกสถานที่ตั้งที่จะกำหนดเป้าหมาย จากนั้นตั้งค่าสถานะกลุ่มสื่อกลางเป็นเปิดใช้ แล้วคลิกเพิ่มหน่วยโฆษณา
เชื่อมโยงกลุ่มสื่อกลางนี้กับหน่วยโฆษณาAdMob ที่มีอยู่อย่างน้อย 1 หน่วย จากนั้นคลิกเสร็จสิ้น
ตอนนี้คุณควรจะเห็นการ์ดหน่วยโฆษณาเต็มไปด้วยหน่วยโฆษณาที่คุณเลือกไว้ ดังนี้
เพิ่ม Pangle เป็นแหล่งที่มาของโฆษณา
การเสนอราคา
ภายใต้การ์ดการเสนอราคาในส่วนแหล่งที่มาของโฆษณา ให้เลือกเพิ่มแหล่งที่มาของโฆษณา จากนั้นเลือก Pangle
คลิกวิธีลงนามในข้อตกลงสำหรับพาร์ทเนอร์ แล้วตั้งค่าพาร์ทเนอร์การเสนอราคากับPangle
คลิกรับทราบและยอมรับ แล้วคลิกต่อไป
หากมีการแมปสำหรับ Pangleอยู่แล้ว ก็เลือกแผนที่นั้นได้ หรือคลิกเพิ่มการแมป
แล้วป้อน App ID and Ad Placement ID ที่ได้รับในส่วนก่อนหน้า จากนั้นคลิกเสร็จสิ้น
สำคัญ: App ID ต้องเชื่อมโยงกับแอปที่กำหนดเป้าหมายเช่นเดียวกับในPangle UIน้ำตก
ใต้การ์ด Waterfall ในส่วนแหล่งที่มาของโฆษณา ให้เลือกเพิ่มแหล่งที่มาของโฆษณา จากนั้นเลือก Pangle

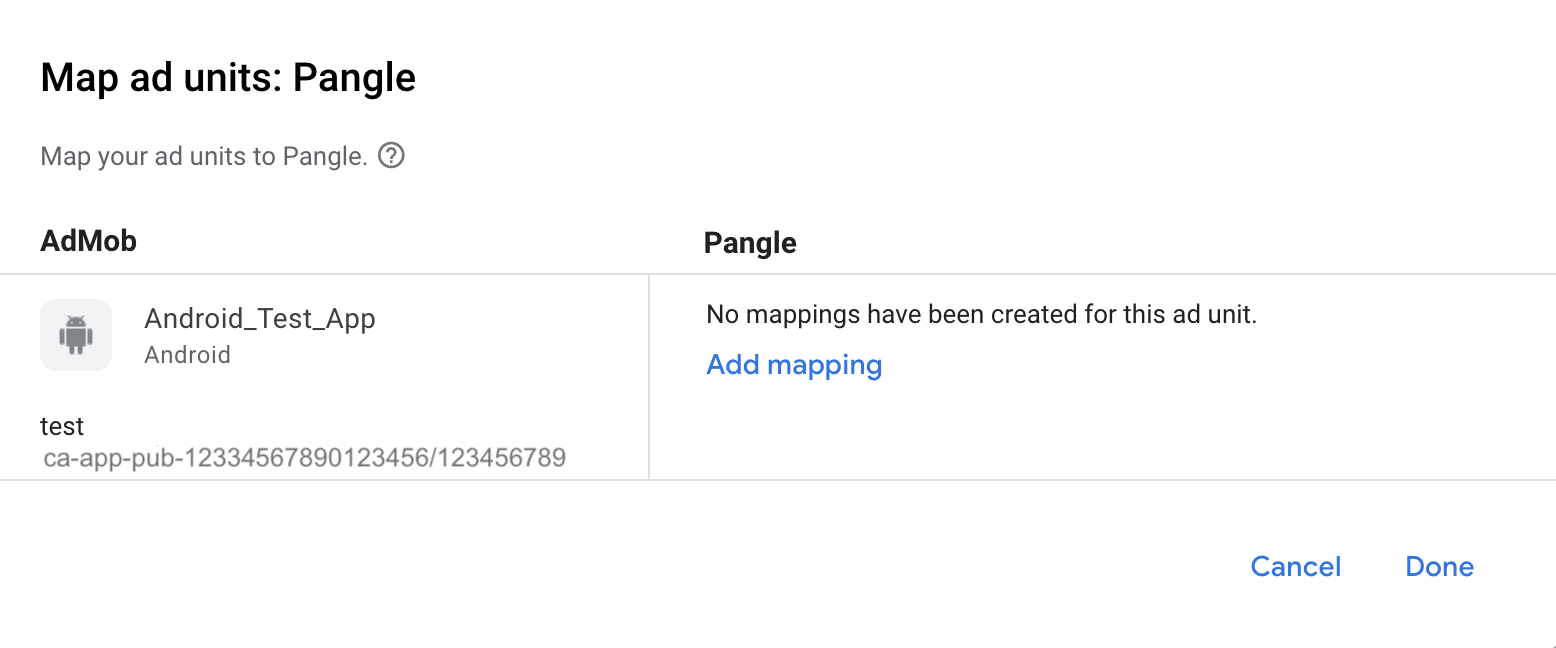

เลือก Pangle จากนั้นป้อนค่า eCPM สำหรับ Pangle แล้วคลิกต่อไปหากมีการแมปสำหรับ Pangleอยู่แล้ว ก็เลือกแผนที่นั้นได้ หรือคลิกเพิ่มการแมป

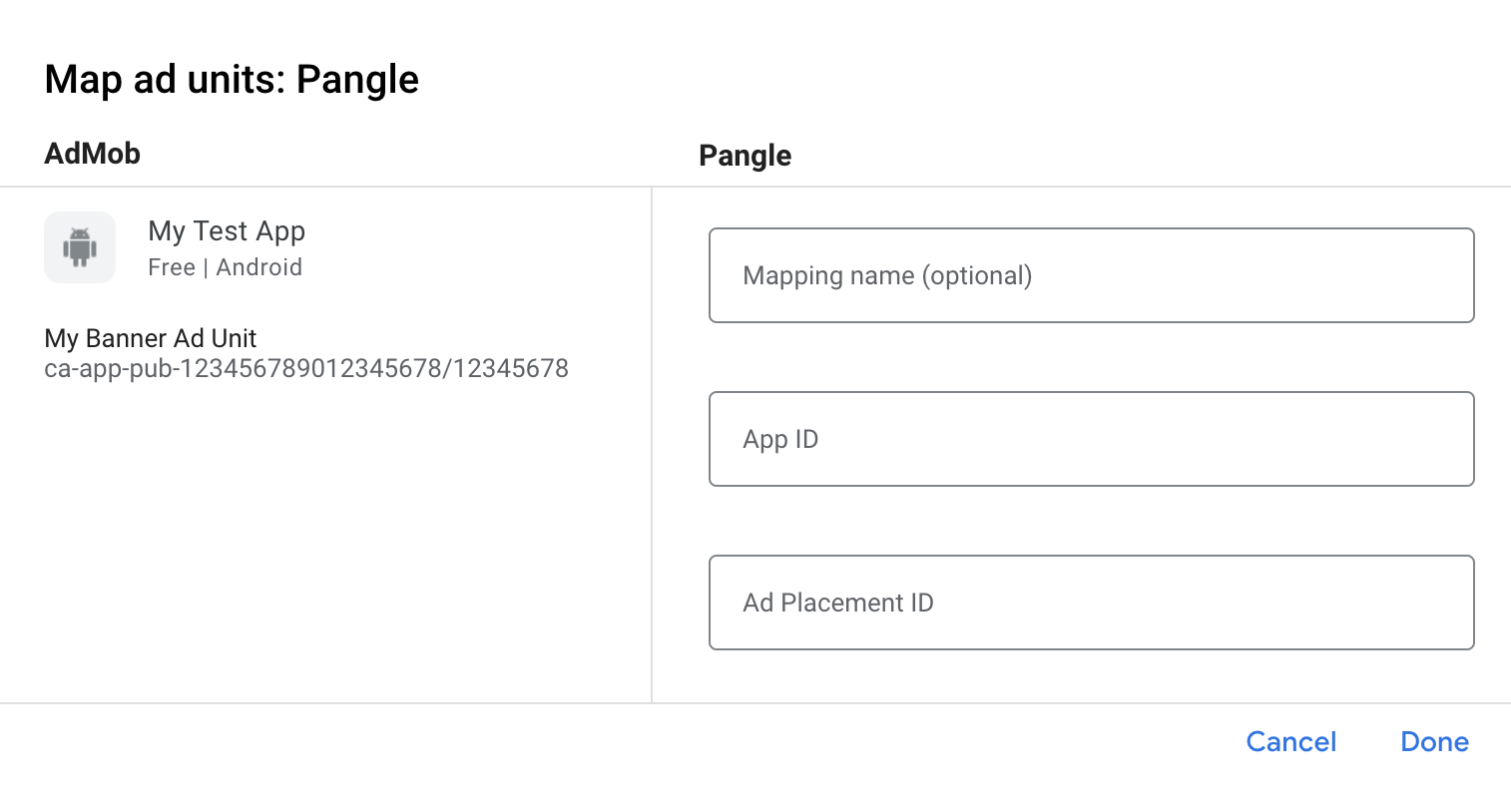

แล้วป้อน App ID and Ad Placement ID ที่ได้รับในส่วนก่อนหน้า จากนั้นคลิกเสร็จสิ้น
Step 3: Import the Pangle SDK and adapter
Android Studio integration (recommended)
In your project-level settings.gradle.kts
file, add the following
repositories:
dependencyResolutionManagement {
repositories {
google()
mavenCentral()
maven {
url = uri("https://artifact.bytedance.com/repository/pangle/")
}
}
}
Then, in your app-level build.gradle.kts
file, add the following
implementation dependencies and configurations. Use the latest versions of the
Pangle SDK and adapter:
dependencies {
implementation("com.google.android.gms:play-services-ads:23.3.0")
implementation("com.google.ads.mediation:pangle:6.1.0.9.0")
}
Manual integration
Download the latest version of the Pangle SDK for Android and extract the
open_ad_sdk.aar
under from the downloaded archive folder and add it to your project.Navigate to the Pangle adapter artifacts on Google's Maven Repository. Select the latest version, download the Pangle adapter's
.aar
file, and add it to your project.
Step 4: Add required code
ProGuard obfuscation
If you use ProGuard to obfuscate Android code, follow the instructions in Pangle's documentation to ensure Pangle SDK code isn't obfuscated.
Step 5: Test your implementation
เปิดใช้โฆษณาทดสอบ
อย่าลืม ลงทะเบียนอุปกรณ์ทดสอบ สำหรับ AdMob และเปิดใช้โหมดทดสอบใน Pangle UI
ยืนยันโฆษณาทดสอบ
ในการยืนยันว่าคุณได้รับโฆษณาทดสอบจาก Pangle ให้เปิดใช้ การทดสอบแหล่งที่มาของโฆษณาแหล่งเดียว ในเครื่องมือตรวจสอบโฆษณาโดยใช้ Pangle (Bidding) and Pangle (Waterfall) แหล่งที่มาของโฆษณา
Optional Steps
Native ads
Ad rendering
The Pangle adapter returns its native ads as
NativeAd
objects. It populates the following
fields
for a
NativeAd
.
Field | Assets always included by Pangle adapter |
---|---|
Headline | |
Image | 1 |
Body | |
Icon | |
Call to action | |
Star rating | |
Store | |
Price | |
Advertiser |
1 The Pangle adapter does not
provide direct access to the main image asset for its native ads. Instead, the
adapter populates the
MediaView
with a video or an image.
Error codes
If the adapter fails to receive an ad from Pangle, you can check the
underlying error from the ad response using
ResponseInfo.getAdapterResponses()
under the following classes:
com.pangle.ads
com.google.ads.mediation.pangle.PangleMediationAdapter
Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
101 | com.google.ads.mediation.pangle | Invalid server parameters (e.g. Missing app ID or placement ID). |
102 | com.google.ads.mediation.pangle | The requested ad size does not match a Pangle supported banner size. |
103 | com.google.ads.mediation.pangle | Missing or invalid bid response. |
-1-60000 | com.pangle.ads | Pangle SDK returned an error. See Pangle's documentation for more details. |
Pangle Android Mediation Adapter Changelog
Version 6.1.0.9.0
- Verified compatibility with Pangle SDK version 6.1.0.9.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Pangle SDK version 6.1.0.9.
Version 6.1.0.7.0
- Verified compatibility with Pangle SDK version 6.1.0.7.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Pangle SDK version 6.1.0.7.
Version 6.1.0.6.0
- Verified compatibility with Pangle SDK version 6.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Pangle SDK version 6.1.0.6.
Version 6.0.0.8.0
- Verified compatibility with Pangle SDK version 6.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.8.
Version 6.0.0.7.0
- Verified compatibility with Pangle SDK version 6.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.7.
Version 6.0.0.5.0
- Verified compatibility with Pangle SDK version 6.0.0.5.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.5.
Version 6.0.0.4.0
- Verified compatibility with Pangle SDK version 6.0.0.4.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.4.
Version 6.0.0.3.0
- Verified compatibility with Pangle SDK version 6.0.0.3.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.3.
Version 5.9.0.6.0
- Verified compatibility with Pangle SDK version 5.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 5.9.0.6.
Version 5.9.0.5.0
- Verified compatibility with Pangle SDK version 5.9.0.5.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 5.9.0.5.
Version 5.9.0.4.0
- Verified compatibility with Pangle SDK version 5.9.0.4.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Pangle SDK version 5.9.0.4.
Version 5.9.0.2.0
- Verified compatibility with Pangle SDK version 5.9.0.2.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Pangle SDK version 5.9.0.2.
Version 5.8.1.0.0
- Verified compatibility with Pangle SDK version 5.8.1.0.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Pangle SDK version 5.8.1.0.
Version 5.8.0.9.0
- Verified compatibility with Pangle SDK version 5.8.0.9.
- Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Pangle SDK version 5.8.0.9.
Version 5.8.0.7.0
- Verified compatibility with Pangle SDK version 5.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.8.0.7.
Version 5.8.0.6.0
- Verified compatibility with Pangle SDK version 5.8.0.6.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.8.0.6.
Version 5.7.0.3.0
- Verified compatibility with Pangle SDK version 5.7.0.3.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.7.0.3.
Version 5.7.0.2.0
- Verified compatibility with Pangle SDK version 5.7.0.2.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.7.0.2.
Version 5.7.0.1.0
- Verified compatibility with Pangle SDK version 5.7.0.1.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.7.0.1.
Version 5.6.0.3.0
- Verified compatibility with Pangle SDK version 5.6.0.3.
- Updated the minimum required Google Mobile Ads SDK version to 22.6.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.6.0.3.
Version 5.5.0.9.0
- Updated the minimum required Google Mobile Ads SDK version to 22.5.0.
- Verified compatibility with Pangle SDK version 5.5.0.9.
Built and tested with:
- Google Mobile Ads SDK version 22.5.0.
- Pangle SDK version 5.5.0.9.
Version 5.5.0.8.0
- Verified compatibility with Pangle SDK version 5.5.0.8.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.5.0.8.
Version 5.5.0.7.0
- Verified compatibility with Pangle SDK version 5.5.0.7.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.5.0.7.
Version 5.5.0.6.0
- Bidding app open ad format isn't supported in this version as this adapter version was reverted to depend on Google Mobile Ads SDK version 22.3.0.
- Verified compatibility with Pangle SDK version 5.5.0.6.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.5.0.6.
Version 5.5.0.4.0
- Added bidding support for app open ad format.
- Added watermark support for bidding ads.
- Updated the minimum required Google Mobile Ads SDK version to 22.4.0.
- Verified compatibility with Pangle SDK version 5.5.0.4.
Built and tested with:
- Google Mobile Ads SDK version 22.4.0.
- Pangle SDK version 5.5.0.4.
Version 5.4.1.1.0
- Fixed an issue where the adapter fails to initialize.
- Verified compatibility with Pangle SDK version 5.4.1.1.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.4.1.1.
Version 5.4.0.9.0
- Verified compatibility with Pangle SDK version 5.4.0.9.
- Updated the minimum required Google Mobile Ads SDK version to 22.3.0.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.4.0.9.
Version 5.4.0.8.0
- Verified compatibility with Pangle SDK version 5.4.0.8.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Pangle SDK version 5.4.0.8.
Version 5.3.0.6.0
- Verified compatibility with Pangle SDK version 5.3.0.6.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Pangle SDK version 5.3.0.6.
Version 5.3.0.5.0
- Verified compatibility with Pangle SDK version 5.3.0.5.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Pangle SDK version 5.3.0.5.
Version 5.3.0.4.0
- Verified compatibility with Pangle SDK version 5.3.0.4.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Pangle SDK version 5.3.0.4.
Version 5.2.0.7.0
- Verified compatibility with Pangle SDK version 5.2.0.7.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- Pangle SDK version 5.2.0.7.
Version 5.2.0.6.0
- Verified compatibility with Pangle SDK version 5.2.0.6.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- Pangle SDK version 5.2.0.6.
Version 5.2.0.5.0
- Verified compatibility with Pangle SDK version 5.2.0.5.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- Pangle SDK version 5.2.0.5.
Version 5.2.0.3.0
- Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
- Verified compatibility with Pangle SDK version 5.2.0.3.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Pangle SDK version 5.2.0.3.
Version 5.1.0.9.0
- Verified compatibility with Pangle SDK version 5.1.0.9.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Pangle SDK version 5.1.0.9.
Version 5.1.0.8.0
- Verified compatibility with Pangle SDK version 5.1.0.8.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Pangle SDK version 5.1.0.8.
Version 5.1.0.6.0
- Updated adapter to use new
VersionInfo
class. - Updated the minimum required Google Mobile Ads SDK version to 22.0.0.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Pangle SDK version 5.1.0.6.
Version 5.0.1.1.0
- Verified compatibility with Pangle SDK version 5.0.1.1.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.1.1.
Version 5.0.1.0.0
- Verified compatibility with Pangle SDK version 5.0.1.0.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.1.0.
Version 5.0.0.9.0
- Verified compatibility with Pangle SDK version 5.0.0.9.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.0.9.
Version 5.0.0.8.0
- Verified compatibility with Pangle SDK version 5.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.0.8.
Version 5.0.0.7.0
- Verified compatibility with Pangle SDK version 5.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.0.7.
Version 5.0.0.6.0
- Verified compatibility with Pangle SDK version 5.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.0.6.
Version 4.9.0.9.0
- Verified compatibility with Pangle SDK version 4.9.0.9.
- Updated the minimum required Google Mobile Ads SDK version to 21.5.0.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 4.9.0.9.
Version 4.9.0.8.0
- Verified compatibility with Pangle SDK version 4.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Pangle SDK version 4.9.0.8.
Version 4.9.0.7.0
- Verified compatibility with Pangle SDK version 4.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Pangle SDK version 4.9.0.7.
Version 4.9.0.6.0
- Verified compatibility with Pangle SDK version 4.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Pangle SDK version 4.9.0.6.
Version 4.8.1.0.0
- Verified compatibility with Pangle SDK version 4.8.1.0.
- Updated the minimum required Google Mobile Ads SDK version to 21.4.0.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Pangle SDK version 4.8.1.0.
Version 4.8.0.9.0
- Verified compatibility with Pangle SDK version 4.8.0.9.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.8.0.9.
Version 4.8.0.8.0
- Verified compatibility with Pangle SDK version 4.8.0.8.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.8.0.8.
Version 4.8.0.7.0
- Verified compatibility with Pangle SDK version 4.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.8.0.7.
Version 4.8.0.6.0
- Verified compatibility with Pangle SDK version 4.8.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.8.0.6.
Version 4.7.0.7.0
- Verified compatibility with Pangle SDK version 4.7.0.7.
- Updated the minimum required Google Mobile Ads SDK version to 21.3.0.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.7.0.7.
Version 4.7.0.6.0
- Verified compatibility with Pangle SDK version 4.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.2.0.
- Pangle SDK version 4.7.0.6.
Version 4.7.0.5.0
- Verified compatibility with Pangle SDK version 4.7.0.5.
Built and tested with:
- Google Mobile Ads SDK version 21.2.0.
- Pangle SDK version 4.7.0.5.
Version 4.7.0.3.0
- Verified compatibility with Pangle SDK version 4.7.0.3.
- The adapter now attempts to initialize the Pangle SDK before loading ads.
Built and tested with:
- Google Mobile Ads SDK version 21.2.0.
- Pangle SDK version 4.7.0.3.
Version 4.6.0.9.0
- Verified compatibility with Pangle SDK version 4.6.0.9.
- Updated the minimum required Google Mobile Ads SDK version to 21.2.0.
Built and tested with:
- Google Mobile Ads SDK version 21.2.0.
- Pangle SDK version 4.6.0.9.
Version 4.5.0.6.1
- Added bidding support for native ad format.
- Updated the minimum required Google Mobile Ads SDK version to 21.1.0.
Built and tested with:
- Google Mobile Ads SDK version 21.1.0.
- Pangle SDK version 4.5.0.6.
Version 4.5.0.6.0
- Verified compatibility with Pangle SDK version 4.5.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.0.0.
- Pangle SDK version 4.5.0.6.
Version 4.5.0.5.0
- Verified compatibility with Pangle SDK version 4.5.0.5.
Built and tested with:
- Google Mobile Ads SDK version 21.0.0.
- Pangle SDK version 4.5.0.5.
Version 4.5.0.4.0
- Verified compatibility with Pangle SDK version 4.5.0.4.
Built and tested with:
- Google Mobile Ads SDK version 21.0.0.
- Pangle SDK version 4.5.0.4.
Version 4.5.0.3.0
- Verified compatibility with Pangle SDK version 4.5.0.3.
- Updated
compileSdkVersion
andtargetSdkVersion
to API 31. - Updated the minimum required Google Mobile Ads SDK version to 21.0.0.
- Updated the minimum required Android API level to 19.
Built and tested with:
- Google Mobile Ads SDK version 21.0.0.
- Pangle SDK version 4.5.0.3.
Version 4.3.0.9.0
- Verified compatibility with Pangle SDK version 4.3.0.9.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.9.
Version 4.3.0.8.0
- Verified compatibility with Pangle SDK version 4.3.0.8.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.8.
Version 4.3.0.7.0
- Verified compatibility with Pangle SDK version 4.3.0.7.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.7.
Version 4.3.0.6.0
- Verified compatibility with Pangle SDK version 4.3.0.6.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.6.
Version 4.3.0.4.0
- Verified compatibility with Pangle SDK version 4.3.0.4.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.4.
Version 4.2.5.3.0
- Initial release!
- Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.2.5.3.
