Integrate DT Exchange with mediation

Note: Fyber Marketplace is now DT Exchange.

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from DT Exchange using AdMob Mediation, covering waterfall integrations. It covers how to add DT Exchange to an ad unit's mediation configuration and how to integrate the DT Exchange SDK and adapter into an iOS app.

Supported integrations and ad formats

The mediation adapter for DT Exchange has the following capabilities:

Integration
Bidding
Waterfall
Formats
Banner
Interstitial
Rewarded
Native

Requirements

• iOS deployment target of 12.0 or higher

• Latest Google Mobile Ads SDK

• Complete the mediation Get started guide

Step 1: Set up configurations in DT Exchange UI

Add new app and ad placement

Sign up or log in to DT Exchange Console.

Click on the Add App button to add your app.

Select your Platform, fill out the rest of the form, and click Add Placements.

Enter a name for the new placement in the field labeled Name your Placement and select your desired Placement Type from the dropdown list. Finally, click Save Placement.

App ID and Placement ID

Open the left navigation bar by hovering your mouse over it. Then click Apps from the left menu.

On the App Management page, take note of the App ID next to your app.

Select your app, navigate to the Placements tab, and click on the copy icon next to Placement Name. Take note of the Placement ID.

Publisher ID, Consumer Key and Consumer Secret

Click on your username from the left menu and select User Profile.

Take note of the Publisher ID, Consumer Key, and Consumer Secret as these are needed in the next step.

Step 2: Set up DT Exchange demand in AdMob UI

Configure mediation settings for your ad unit

You need to add DT Exchange to the mediation configuration for your ad unit.

First, sign in to your AdMob account. Next, navigate to the Mediation tab. If you have an existing mediation group you'd like to modify, click the name of that mediation group to edit it, and skip ahead to Add DT Exchange as an ad source.

To create a new mediation group, select Create Mediation Group.

Enter your ad format and platform, then click Continue.

Give your mediation group a name, and select locations to target. Next, set the mediation group status to Enabled, and then click Add Ad Units.

Associate this mediation group with one or more of your existing AdMob ad units. Then click Done.

You should now see the ad units card populated with the ad units you selected:

Add DT Exchange as an ad source

Under the Waterfall card in the Ad Sources section, select Add Ad Source. Then select DT Exchange.

Select DT Exchange and enable the Optimize switch. Enter the Publisher ID, Consumer Secret and Consumer Key obtained in the previous section to set up ad source optimization for DT Exchange. Then enter an eCPM value for DT Exchange and click Continue.

Note: You only need to set up ad source optimization once per network.

If you already have a mapping for DT Exchange, you can select it. Otherwise, click Add mapping.

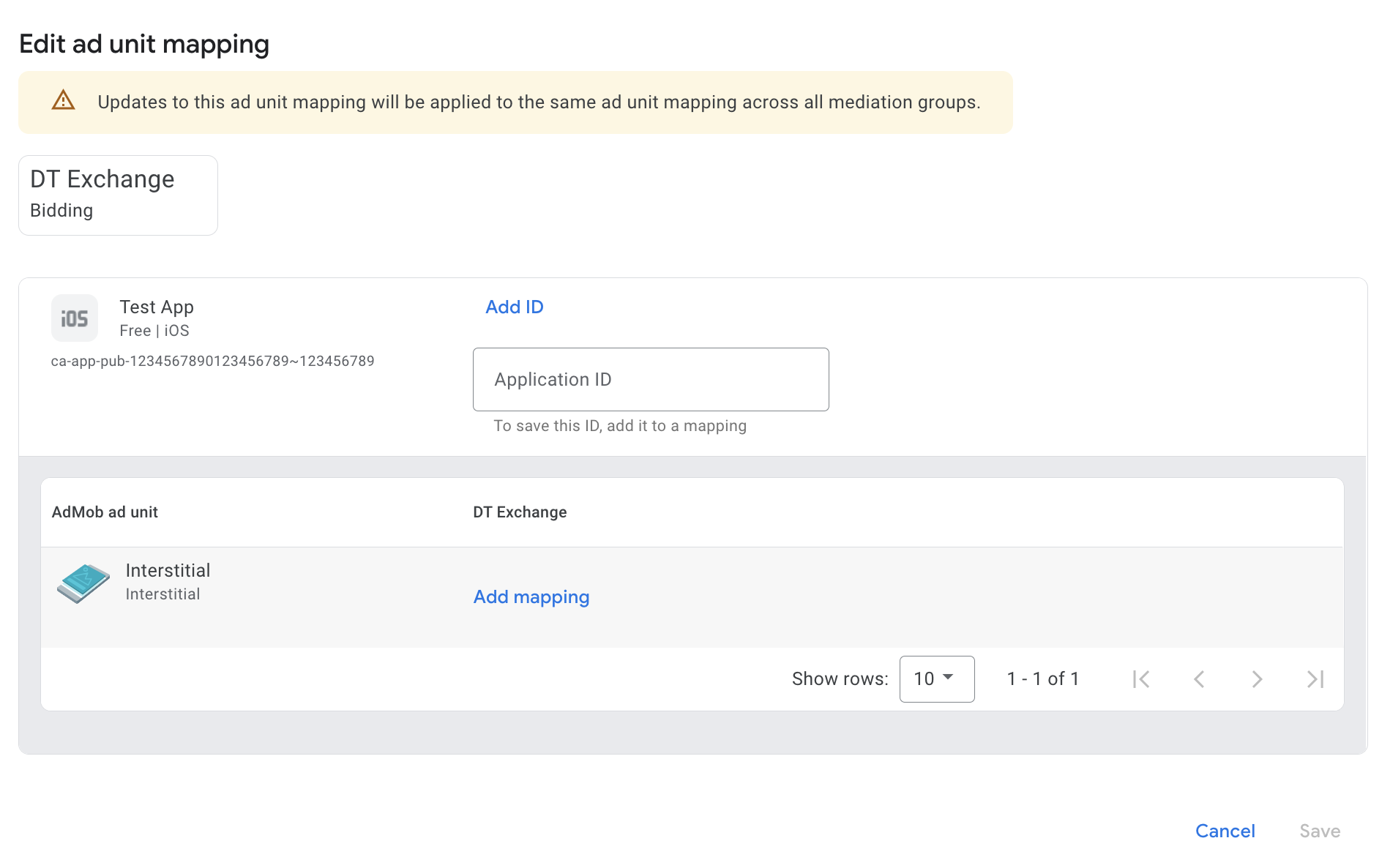

Next, enter the Application ID and Placement ID obtained in the previous section. Then click Done.

Important: The Application ID must be associated with the targeted app as in the DT Exchange UI.

Note: Ad source optimization takes a few days to gather enough data to accurately calculate eCPM for a mediation network. In the meantime, the ad source optimization status is PENDING, so you must manually set an eCPM value for the network. Once the eCPM can be calculated, the ad source automatically starts updating the eCPM on your behalf.

Add DT Exchange (Fyber Monetization) to GDPR and US state regulations ad partners list

Important: Verify that you have Account Management permission to complete the configuration for EU Consent and GDPR, CPRA, and User Messaging Platform. See Manage user access to your account for details.

Follow the steps in GDPR settings and US state regulations settings to add DT Exchange (Fyber Monetization) to the GDPR and US state regulations ad partners list in the AdMob UI.

Step 3: Import the DT Exchange SDK and adapter

Note: Failure to integrate the compatible DT Exchange and Google Mobile Ads SDK versions might lead to build issues.

Using CocoaPods (recommended)

Add the following line to your project's Podfile:

pod 'GoogleMobileAdsMediationFyber'

From the command line run:

pod install --repo-update

Manual integration

• Download the latest version of the DT Exchange SDK for iOS and link the following frameworks to your project:
  • IASDKCore.framework
  • IASDKMRAID.framework
  • IASDKVideo.framework
• Download the latest version of the DT Exchange adapter from the download link in Changelog and link FyberAdapter.framework in your project.
• Add the following frameworks to your project:
  • libxml2.2.tbd

Step 4: Implement privacy settings on DT Exchange SDK

EU consent and GDPR

Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.

DT Exchange contains an API that lets you forward user consent to their SDK. The following sample code shows how to pass consent information to the DT Exchange SDK manually. Should you choose to pass consent information to the DT Exchange SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.

Swift

import IASDKCore
// ...

IASDKCore.sharedInstance().gdprConsent = IAGDPRConsentType.given
IASDKCore.sharedInstance().gdprConsentString = "myGdprConsentString"

Objective-C

#import <IASDKCore/IASDKCore.h>
// ...

[IASDKCore.sharedInstance setGDPRConsent:YES];
[IASDKCore.sharedInstance setGDPRConsentString:@"myGdprConsentString"];

Visit DT Exchange's GDPR Resource Page and their GDPR implementation guide for more details and the values that may be provided in the method.

US states privacy laws

U.S. states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered via a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The U.S. states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.

DT Exchange contains an API that lets you forward user consent to their SDK. The following sample code shows how to pass consent information to the DT Exchange SDK manually. Should you choose to pass consent information to the DT Exchange SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.

Swift

import IASDKCore
// ...

IASDKCore.sharedInstance().ccpaString = "myCCPAConsentString"

Objective-C

#import <IASDKCore/IASDKCore.h>
// ...

[IASDKCore.sharedInstance setCCPAString:@"myCCPAConsentString"];

Visit DT Exchange's CCPA Resource Page and their CCPA implementation guide for more details and the values that may be provided in the method.

Step 5: Add required code

SKAdNetwork integration

Follow DT Exchange's documentation to add the SKAdNetwork identifiers to your project's Info.plist file.

Step 6: Test your implementation

Enable test ads

Make sure you register your test device for AdMob.

Important: Disable test mode for AdMob and DT Exchange before releasing your app.

Verify test ads

To verify that you are receiving test ads from DT Exchange, enable single ad source testing in ad inspector using the DT Exchange (Waterfall) ad source(s).

Optional steps

Network-specific parameters

The DT Exchange adapter supports additional request parameters that can be passed to the adapter using the GADMAdapterFyberExtras(). The adapter looks for the following keys in the bundle:

Request parameters and values
setUserData The age, gender and zip code of the user.	IAUserData
setMuteAudio	Boolean. Mute or unmute video

Here's a code example of how to set these ad request parameters:

Swift

let userData = IAUserData.build({ builder in
  builder.age = 23
  builder.gender = IAUserGenderType.male
  builder.zipCode = "1234"
}];

let request = GADRequest()
let extras = GADMAdapterFyberExtras()
extras.userData = userData
extras.muteAudio = true
request.register(extras)

Objective-C

IAUserData *userData = [IAUserData build:^(id<IAUserDataBuilder> _Nonnull builder) {
    builder.age = 23;
    builder.gender = IAUserGenderTypeMale;
    builder.zipCode = @"1234";
}];

GADRequest *request = [GADRequest request];
GADMAdapterFyberExtras *extras = [[GADMAdapterFyberExtras alloc] init];
extras.userData = userData;
extras.muteAudio = YES;
[request registerAdNetworkExtras:extras];

Consult the DT Exchange integration guide for more information.

Error codes

If the adapter fails to receive an ad from DT Exchange, you can check the underlying error from the ad response using GADResponseInfo.adNetworkInfoArray under the following class:

GADMediationAdapterFyber

Here are the codes and accompanying messages thrown by the DT Exchange adapter when an ad fails to load:

Error code	Reason
0-10	DT Exchange SDK returned an error. See documentation for more details.
101	DT Exchange server parameters configured in the AdMob UI are missing/invalid.
102	The requested ad size does not match a DT Exchange supported banner size.
103	Failed to show ad because ad object has already been used.
104	Failed to show DT Exchange ads due to ad not ready.
105	DT Exchange SDK returned an initialization error.

DT Exchange iOS Mediation Adapter Changelog

Version 8.3.2.1

• Removed deprecated usage of keywords.
• Fixed a bug which was causing interstitial and rewarded ads to disappear and a blank screen to be shown.
• Updated CFBundleShortVersionString to have three components instead of four.

Built and tested with:

• Google Mobile Ads SDK version 11.10.0.
• DT Exchange SDK version 8.3.2.

Version 8.3.2.0

• Verified compatibility with DT Exchange SDK version 8.3.2.

Built and tested with:

• Google Mobile Ads SDK version 11.8.0.
• DT Exchange SDK version 8.3.2.

Version 8.3.1.0

• Verified compatibility with DT Exchange SDK version 8.3.1.

Built and tested with:

• Google Mobile Ads SDK version 11.6.0.
• DT Exchange SDK version 8.3.1.

Version 8.3.0.0

• Verified compatibility with DT Exchange SDK version 8.3.0.

Built and tested with:

• Google Mobile Ads SDK version 11.5.0.
• DT Exchange SDK version 8.3.0.

Version 8.2.8.0

• Verified compatibility with DT Exchange SDK version 8.2.8.

Built and tested with:

• Google Mobile Ads SDK version 11.3.0.
• DT Exchange SDK version 8.2.8.

Version 8.2.7.0

• Verified compatibility with DT Exchange SDK version 8.2.7.

Built and tested with:

• Google Mobile Ads SDK version 11.2.0.
• DT Exchange SDK version 8.2.7.

Version 8.2.6.1

• Added didFailToPresentWithError callbacks in rewarded ad.
• Added IAAdDidExpire delegate method in interstitial and rewarded ads.
• Now requires minimum iOS version 12.0.
• Now requires Google Mobile Ads SDK version 11.0 or higher.
• Included Info.plist in the frameworks within DTExchangeAdapter.xcframework.

Built and tested with:

• Google Mobile Ads SDK version 11.0.1.
• DT Exchange SDK version 8.2.6.

Version 8.2.6.0

• Verified compatibility with DT Exchange SDK version 8.2.6.
• Removed the deprecated willBackgroundApplication delegate methods from the banner and interstitial ad implementations.

Built and tested with:

• Google Mobile Ads SDK version 10.14.0.
• DT Exchange SDK version 8.2.6.

Version 8.2.5.0

• Verified compatibility with DT Exchange SDK version 8.2.5.

Built and tested with:

• Google Mobile Ads SDK version 10.14.0.
• DT Exchange SDK version 8.2.5.

Version 8.2.4.0

• Verified compatibility with DT Exchange SDK version 8.2.4.

Built and tested with:

• Google Mobile Ads SDK version 10.9.0.
• DT Exchange SDK version 8.2.4.

Version 8.2.3.0

• Verified compatibility with DT Exchange SDK version 8.2.3.

Built and tested with:

• Google Mobile Ads SDK version 10.7.0.
• DT Exchange SDK version 8.2.3.

Version 8.2.2.0

• Verified compatibility with DT Exchange SDK version 8.2.2.

Built and tested with:

• Google Mobile Ads SDK version 10.5.0.
• DT Exchange SDK version 8.2.2.

Version 8.2.1.0

• Verified compatibility with DT Exchange SDK version 8.2.1.
• Removed support of the armv7 architecture.
• Now requires minimum iOS version 11.0.
• Now requires Google Mobile Ads SDK version 10.4.0 or higher.

Built and tested with:

• Google Mobile Ads SDK version 10.4.0.
• DT Exchange SDK version 8.2.1.

Version 8.2.0.0

• Verified compatibility with DT Exchange SDK version 8.2.0.

Built and tested with:

• Google Mobile Ads SDK version 10.2.0.
• DT Exchange SDK version 8.2.0.

Version 8.1.9.1

• Now requires Google Mobile Ads SDK version 10.0.0 or higher.

Built and tested with:

• Google Mobile Ads SDK version 10.0.0.
• DT Exchange SDK version 8.1.9.

Version 8.1.9.0

• Removed use of deprecated gender, birthday and location mediation APIs.
• Verified compatibility with DT Exchange SDK version 8.1.9.

Built and tested with:

• Google Mobile Ads SDK version 9.14.0.
• DT Exchange SDK version 8.1.9.

Version 8.1.7.0

• Verified compatibility with DT Exchange SDK version 8.1.7.
• Adapter is rebranded to "DT Exchange".

Built and tested with:

• Google Mobile Ads SDK version 9.13.0.
• DT Exchange SDK version 8.1.7.

Version 8.1.6.0

• Added support for passing muteAudio extra in GADMAdapterFyberExtras class.
• Updated the adapter to use the didRewardUser API.
• Now requires Google Mobile Ads SDK version 9.8.0 or higher.
• Verified compatibility with Fyber Marketplace SDK version 8.1.6.

Built and tested with:

• Google Mobile Ads SDK version 9.11.0.
• Fyber Marketplace SDK version 8.1.6.

Version 8.1.5.0

• Verified compatibility with Fyber Marketplace SDK version 8.1.5.

Built and tested with:

• Google Mobile Ads SDK version 9.5.0.
• Fyber Marketplace SDK version 8.1.5.

Version 8.1.4.0

• Verified compatibility with Fyber Marketplace SDK version 8.1.4.
• Added support for the arm64 simulator architecture.

Built and tested with:

• Google Mobile Ads SDK version 9.1.0.
• Fyber Marketplace SDK version 8.1.4.

Version 8.1.3.1

• Verified compatibility with Google Mobile Ads SDK version 9.0.0.
• Now requires Google Mobile Ads SDK version 9.0.0 or higher.

Built and tested with:

• Google Mobile Ads SDK version 9.0.0.
• Fyber Marketplace SDK version 8.1.3.

Version 8.1.3.0

• Verified compatibility with Fyber Marketplace SDK version 8.1.3.

Built and tested with:

• Google Mobile Ads SDK version 8.13.0.
• Fyber Marketplace SDK version 8.1.3.

Version 8.1.2.0

• Verified compatibility with Fyber Marketplace SDK version 8.1.2.

Built and tested with:

• Google Mobile Ads SDK version 8.13.0.
• Fyber Marketplace SDK version 8.1.2.

Version 8.1.1.0

• Verified compatibility with Fyber Marketplace SDK version 8.1.1.

Built and tested with:

• Google Mobile Ads SDK version 8.12.0.
• Fyber Marketplace SDK version 8.1.1.

Version 8.1.0.0

• Verified compatibility with Fyber Marketplace SDK version 8.1.0.

Built and tested with:

• Google Mobile Ads SDK version 8.12.0.
• Fyber Marketplace SDK version 8.1.0.

Version 8.0.0.0

• Verified compatibility with Fyber Marketplace SDK version 8.0.0.

Built and tested with:

• Google Mobile Ads SDK version 8.12.0.
• Fyber Marketplace SDK version 8.0.0.

Version 7.9.0.0

• Verified compatibility with Fyber Marketplace SDK version 7.9.0.

Built and tested with:

• Google Mobile Ads SDK version 8.11.0.
• Fyber Marketplace SDK version 7.9.0.

Version 7.8.9.0

• Verified compatibility with Fyber Marketplace SDK version 7.8.9.

Built and tested with:

• Google Mobile Ads SDK version 8.10.0.
• Fyber Marketplace SDK version 7.8.9.

Version 7.8.8.1

• Moved ad event didEndVideo to rewarded ad callback IAAdDidReward.

Built and tested with:

• Google Mobile Ads SDK version 8.9.0.
• Fyber Marketplace SDK version 7.8.8.

Version 7.8.8.0

• Now requires minimum iOS version 10.0.
• Verified compatibility with Fyber Marketplace SDK version 7.8.8.

Built and tested with:

• Google Mobile Ads SDK version 8.9.0.
• Fyber Marketplace SDK version 7.8.8.

Version 7.8.7.0

• Verified compatibility with Fyber Marketplace SDK version 7.8.7.

Built and tested with:

• Google Mobile Ads SDK version 8.8.0.
• Fyber Marketplace SDK version 7.8.7.

Version 7.8.6.0

• Verified compatibility with Fyber Marketplace SDK version 7.8.6.

Built and tested with:

• Google Mobile Ads SDK version 8.5.0.
• Fyber Marketplace SDK version 7.8.6.

Version 7.8.5.0

• Verified compatibility with Fyber Marketplace SDK version 7.8.5.
• Now requires building against Xcode 12.5 or higher.

Built and tested with:

• Google Mobile Ads SDK version 8.5.0.
• Fyber Marketplace SDK version 7.8.5.

Version 7.8.1.0

• Verified compatibility with Fyber Marketplace SDK version 7.8.1.
• Relaxed dependency to Google Mobile Ads SDK version 8.0.0 or higher.
• Added standardized adapter error codes and messages.
• Updated the adapter to use the .xcframework format.

Built and tested with:

• Google Mobile Ads SDK version 8.0.0.
• Fyber Marketplace SDK version 7.8.1.

Version 7.8.0.0

• Verified compatibility with Fyber Marketplace SDK version 7.8.0.

Built and tested with:

• Google Mobile Ads SDK version 7.69.0.
• Fyber Marketplace SDK version 7.8.0.

Version 7.7.3.0

• Verified compatibility with Fyber Marketplace SDK version 7.7.3.
• Now requires Google Mobile Ads SDK version 7.69.0 or higher.

Built and tested with:

• Google Mobile Ads SDK version 7.69.0.
• Fyber Marketplace SDK version 7.7.3.

Version 7.7.2.0

• Verified compatibility with Fyber Marketplace SDK version 7.7.2.
• Now requires Google Mobile Ads SDK version 7.67.0 or higher.

Built and tested with:

• Google Mobile Ads SDK version 7.67.0.
• Fyber Marketplace SDK version 7.7.2.

Version 7.7.1.0

• Verified compatibility with Fyber Marketplace SDK version 7.7.1.
• Now requires Google Mobile Ads SDK version 7.66.0 or higher.

Built and tested with:

• Google Mobile Ads SDK version 7.66.0.
• Fyber Marketplace SDK version 7.7.1.

Version 7.6.4.0

• Verified compatibility with Fyber Marketplace SDK version 7.6.4.
• Now requires Google Mobile Ads SDK version 7.65.0 or higher.
• Added GADMAdapterFyberExtras class, enabling publishers to pass keywords and userData to Fyber Marketplace SDK.

Built and tested with:

• Google Mobile Ads SDK version 7.65.0.
• Fyber Marketplace SDK version 7.6.4.

Version 7.6.3.0

• Verified compatibility with Fyber Marketplace SDK version 7.6.3.

Built and tested with:

• Google Mobile Ads SDK version 7.64.0.
• Fyber Marketplace SDK version 7.6.3.

Version 7.6.2.0

• Verified compatibility with Fyber Marketplace SDK version 7.6.2.
• Now requires Google Mobile Ads SDK version 7.64.0 or higher.

Built and tested with:

• Google Mobile Ads SDK version 7.64.0.
• Fyber Marketplace SDK version 7.6.2.

Version 7.6.0.0

• Verified compatibility with Fyber Marketplace SDK version 7.6.0.
• Now requires Google Mobile Ads SDK version 7.62.0 or higher.
• Updated the adapter to support inline adaptive banner requests.
• Added support for rewarded HTML.
• Added new reward callback: IAAdDidReward (for both rewarded video and rewarded HTML). IAVideoCompleted is no longer used for rewarding.

Built and tested with:

• Google Mobile Ads SDK version 7.62.0.
• Fyber Marketplace SDK version 7.6.0.

Version 7.5.6.1

• Temporarily removed Fyber Marketplace SDK-specific logging.

Built and tested with:

• Google Mobile Ads SDK version 7.60.0.
• Fyber Marketplace SDK version 7.5.6.

Version 7.5.6.0

• Verified compatibility with Fyber Marketplace SDK version 7.5.6.
• Updated the minimum required Google Mobile Ads SDK version to 7.60.0.

Built and tested with:

• Google Mobile Ads SDK version 7.60.0.
• Fyber Marketplace SDK version 7.5.6.

Version 7.5.5.0

• Verified compatibility with Fyber Marketplace SDK version 7.5.5.
• Updated the minimum required Google Mobile Ads SDK version to 7.59.0.

Built and tested with:

• Google Mobile Ads SDK version 7.59.0.
• Fyber Marketplace SDK version 7.5.5 .

Version 7.5.4.0

• Verified compatibility with Fyber Marketplace SDK version 7.5.4.
• Removed support for the i386 architecture.

Built and tested with:

• Google Mobile Ads SDK version 7.57.0.
• Fyber Marketplace SDK version 7.5.4.

Version 7.5.3.0

• Verified compatibility with Fyber Marketplace SDK version 7.5.3.

Built and tested with:

• Google Mobile Ads SDK version 7.55.0.
• Fyber Marketplace SDK version 7.5.3.

Version 7.5.1.0

• Verified compatibility with Fyber Marketplace SDK version 7.5.1.
• Fixed a crash that occurred when initializing the Fyber SDK.

Built and tested with:

• Google Mobile Ads SDK version 7.55.0.
• Fyber Marketplace SDK version 7.5.1.

Version 7.5.0.0 (Deprecated)

• This version has been removed. Please use version 7.5.1.0 or higher.
• Verified compatibility with Fyber Marketplace SDK version 7.5.0.
• Adapter will now initialize the Fyber SDK before making an ad request if the Fyber SDK has not been initialized yet.

Built and tested with:

• Google Mobile Ads SDK version 7.53.0.
• Fyber Marketplace SDK version 7.5.0.

Version 7.4.0.0

• Initial release!
• Added support for banner, interstitial and rewarded ad formats.

Built and tested with:

• Google Mobile Ads SDK version 7.52.0.
• Fyber Marketplace SDK version 7.4.0.
