Esempi di funzionalità dei dati di stile

Seleziona la piattaforma: Android iOS JavaScript

Questa pagina mostra come accedere a un set di dati e personalizzarne gli elementi in modo programmatico e illustra esempi di personalizzazione degli elementi di dati in base alle geometrie di punti, poligoni e polilinee.

Lo stile basato sui dati per i set di dati esegue il rendering delle funzionalità dei dati in base alle coordinate di latitudine e longitudine fornite dal file di dati geospaziali utilizzato per creare il set di dati.

Esempio di stile dei dati puntuali

Questo esempio mostra un approccio per lo stile delle funzionalità basate sulla geometria dei punti.

Applica lo stile alle funzionalità che rappresentano i colori degli scoiattoli.

Informazioni sul set di dati

Il set di dati utilizzato in questo esempio è il risultato di un'indagine del 2018 sugli scoiattoli a Central Park, New York. Nel seguente estratto dal file di dati CSV, vediamo che le colonne x e y vengono utilizzate per la geografia; è inclusa una colonna LatLng, ma non viene utilizzata in questo esempio perché i set di dati supportano solo il formato WKT se la colonna è denominata WKT. Per ulteriori informazioni sui formati supportati per la località, vedi Requisiti del file CSV.

Il set di dati del censimento degli scoiattoli contiene una buona varietà di punti dati diversi relativi al colore del pelo e al comportamento osservati degli scoiattoli (assicurati di scorrere orizzontalmente per visualizzarli tutti).

X Y UniqueSquirrelID Ettaro Maiusc Data Hectare SquirrelNumber Età PrimaryFurColor HighlightFurColor CombinationofPrimaryandHighlightColor Colornotes Località Misurazione AboveGroundSighter SpecificLocation In esecuzione All'inseguimento Arrampicata Mangiare Foraggiamento Altre attività Kuks Quaas Gemiti Tailflags Tailtwitches Approcci Indifferente Runsfrom OtherInteractions LatLng
-73.9561344937861 40.7940823884086 37F-PM-1014-03 37F PM 10142018 3 + falso falso falso falso falso falso falso falso falso falso falso falso falso POINT (-73.9561344937861 40.7940823884086)
-73.9688574691102 40.7837825208444 21B-AM-1019-04 21 MLD AM 10192018 4 + falso falso falso falso falso falso falso falso falso falso falso falso falso POINT (-73.9688574691102 40.7837825208444)
-73.9742811484852 40.775533619083 11B-PM-1014-08 11B PM 10142018 8 Grigio Grigio+ Fuori terra 10 falso true falso falso falso falso falso falso falso falso falso falso falso POINT (-73.97428114848522 40.775533619083)
-73.9596413903948 40.7903128889029 32E-PM-1017-14 32E PM 10172018 14 Adulto Grigio Grigio+ Nessun elemento selezionato come principale. Grigio selezionato come Evidenziazioni. Sono stati apportati aggiustamenti esecutivi. falso falso falso true true falso falso falso falso falso falso falso true POINT (-73.9596413903948 40.7903128889029)
-73.9702676472613 40.7762126854894 13E-AM-1017-05 13E AM 10172018 5 Adulto Grigio Cannella Grigio + Cannella Fuori terra sul ceppo d'albero falso falso falso falso true falso falso falso falso falso falso falso falso POINT (-73.9702676472613 40.7762126854894)
-73.9683613516225 40.7725908847499 11H-AM-1010-03 11H AM 10102018 3 Adulto Cannella Bianco Cannella+Bianco falso falso falso falso true falso falso falso falso true falso true falso POINT (-73.9683613516225 40.7725908847499)
-73.9541201789795 40.7931811701082 36H-AM-1010-02 36 ore AM 10102018 2 Adulto Grigio Grigio+ poco fuori dall'ettaro Piano terra FALSO falso falso falso falso true falso falso falso falso falso falso falso falso POINT (-73.9541201789795 40.7931811701082)

Funzionalità di stile dei dati puntuali

Il codice in questo esempio adotta l'approccio di applicare uno stile al colore di riempimento e al colore del tratto per ogni punto in base all'attributo CombinationofPrimaryandHighlightColor, che combina i colori primari e secondari della pelliccia di ogni scoiattolo.

Swift

let mapView = GMSMapView(frame: .zero, mapID: GMSMapID(identifier: "YOUR_MAP_ID"), camera: GMSCameraPosition(latitude: 40.7, longitude: -74.0, zoom: 12))

let layer = mapView.datasetFeatureLayer(of: "YOUR_DATASET_ID")

// Define a point style with fill and radius.
// Apply the style to the datasets features.
layer.style = { feature in
    switch(feature.datasetAttributes["CombinationofPrimaryandHighlightColor"]){
      case "Black+"  :
        let style = MutableFeatureStyle()
        style.fillColor = .black;
        style.pointRadius = 8;
        return style
      case "Cinnamon+"  :
        let style = MutableFeatureStyle()
        style.fillColor = UIColor(red: 139/255, green: 0, blue: 0, alpha: 1);
        style.pointRadius = 8;
        return style
      ...
      default :
        let style = MutableFeatureStyle()
        style.fillColor = .yellow;
        style.pointRadius = 8;
        return style
    }
}

Objective-C

GMSMapView *mapView = [GMSMapView mapWithFrame:CGRectZero mapID:[GMSMapID mapIDWithIdentifier:@"MAP_ID"] camera:[GMSCameraPosition cameraWithLatitude: 40.7 longitude: -74.0 zoom:12]];

GMSDatasetFeatureLayer *layer = [mapView datasetFeatureLayerOfDatasetID:@"YOUR_DATASET_ID"];

// Define a point style with fill and radius.
// Apply the style to the datasets features.
layer.style = ^(GMSDatasetFeature *feature) {
  NSString *attrib = feature.datasetAttributes[@"CombinationofPrimaryandHighlightColor"];
  if ([attrib isEqualToString:@"Black+"])  {
    GMSMutableFeatureStyle *style = [GMSMutableFeatureStyle style];
    style.fillColor = [UIColor blackColor];
    style.pointRadius = 8;
    return style;
  } else if([attrib isEqualToString:@"Cinnamon+"]) {
    GMSMutableFeatureStyle *style = [GMSMutableFeatureStyle style];
    style.fillColor = [UIColor colorWithRed:139.0f/255.0f
                                      green:0.0f
                                        blue:0.0f
                                      alpha:1.0f];
    style.pointRadius = 8;
    return style;
  }
  ...
  else {
    GMSMutableFeatureStyle *style = [GMSMutableFeatureStyle style];
    style.fillColor = [UIColor yellowColor];
    style.pointRadius = 8;
    return style;
  }
};

Esempio di stile dei dati dei poligoni

Questo esempio mostra un approccio per lo stile delle funzionalità basate sulla geometria dei poligoni.

Applica lo stile alle funzionalità che rappresentano i tipi di parchi.

Informazioni sul set di dati

Il set di dati utilizzato in questo esempio mostra i parchi di New York. Il seguente estratto dal file GeoJSON del set di dati mostra una voce di funzionalità rappresentativa.

{
  "type": "Feature",
  "properties": {
    "jurisdiction": "DPR",
    "mapped": "False",
    "zipcode": "11356",
    "acres": "0.05",
    "location": "College Pl., College Pt. Blvd., bet. 11 Ave. and 12 Ave.",
    "nys_assembly": "27",
    "councildistrict": "19",
    "url": "http://www.nycgovparks.org/parks/Q042/",
    "typecategory": "Triangle/Plaza",
    "us_congress": "14",
    "eapply": "Poppenhusen Park",
    "parentid": "Q-07",
    "gispropnum": "Q042",
    "retired": "false",
    "communityboard": "407",
    "objectid": "6248",
    "globalid": "F4810079-CBB9-4BE7-BBFA-B3C0C35D5DE5",
    "name311": "Poppenhusen Park",
    "department": "Q-07",
    "pip_ratable": "true",
    "subcategory": "Sitting Area/Triangle/Mall",
    "precinct": "109",
    "permit": "true",
    "acquisitiondate": null,
    "omppropid": "Q042",
    "gisobjid": "100000301",
    "signname": "Poppenhusen Park",
    "address": null,
    "permitparent": "Q-07",
    "class": "PARK",
    "nys_senate": "11",
    "permitdistrict": "Q-07",
    "borough": "Q",
    "waterfront": "false"
  },
  "geometry": {
    "type": "MultiPolygon",
    "coordinates": [
      [
        [
          [
            -73.84575702371716,
            40.78796240884273
          ],
          [
            -73.84593393292693,
            40.78796857347548
          ],
          [
            -73.84577256469657,
            40.787651355629556
          ],
          [
            -73.84575702371716,
            40.78796240884273
          ]
        ]
      ]
    ]
  }
},

Applicare lo stile alle funzionalità dei dati poligonali

Il codice in questo esempio applica una colorazione speciale alle funzionalità dei dati associate a un typecategory "Non sviluppato" o "Parkway" e colora tutte le altre funzionalità di verde.

Swift

let mapView = GMSMapView(frame: .zero, mapID: GMSMapID(identifier: "YOUR_MAP_ID"), camera: GMSCameraPosition(latitude: 40.7, longitude: -74.0, zoom: 12))

let layer = mapView.datasetFeatureLayer(of: "YOUR_DATASET_ID")

// Define a polygon style with fill and stroke.
// Apply the style to the datasets features.
layer.style = { feature in
  switch(feature.datasetAttributes["typecategory"]){
    case "Undeveloped"  :
      let style = MutableFeatureStyle()
      style.fillColor = .blue.withAlphaComponent(0.3);
      style.strokeColor = .blue;
      style.strokeWidth = 2.0;
      return style
    case "Parkway"  :
      let style = MutableFeatureStyle()
      style.fillColor = .red.withAlphaComponent(0.3);
      style.strokeColor = .red;
      style.strokeWidth = 2.0;
      return style
    default :
      let style = MutableFeatureStyle()
      style.fillColor = .green.withAlphaComponent(0.3);
      style.strokeColor = .green;
      style.strokeWidth = 2.0;
      return style
  }
}

Objective-C

GMSMapView *mapView = [GMSMapView mapWithFrame:CGRectZero mapID:[GMSMapID mapIDWithIdentifier:@"MAP_ID"] camera:[GMSCameraPosition cameraWithLatitude: 40.7 longitude: -74.0 zoom:12]];

GMSDatasetFeatureLayer *layer = [mapView datasetFeatureLayerOfDatasetID:@"YOUR_DATASET_ID"];

// Define a polygon style with fill and stroke.
// Apply the style to the datasets features.
layer.style = ^(GMSDatasetFeature *feature) {
  NSString *attrib = feature.datasetAttributes[@"typecategory"];
  if ([attrib isEqualToString:@"Undeveloped"]) {
        GMSMutableFeatureStyle *style = [GMSMutableFeatureStyle style];
        style.fillColor = [[UIColor blueColor] colorWithAlphaComponent:0.3];
        style.strokeColor = [UIColor blueColor];
        style.strokeWidth = 2.0;
        return style;
  } else if([attrib isEqualToString:@"Parkway"]) {
        GMSMutableFeatureStyle *style = [GMSMutableFeatureStyle style];
        style.fillColor = [[UIColor redColor] colorWithAlphaComponent:0.3];
        style.strokeColor = [UIColor redColor];
        style.strokeWidth = 2.0;
        return style;
  } else {
        GMSMutableFeatureStyle *style = [GMSMutableFeatureStyle style];
        style.fillColor = [[UIColor greenColor] colorWithAlphaComponent:0.3];
        style.strokeColor = [UIColor greenColor];
        style.strokeWidth = 2.0;
        return style;
    }
  };

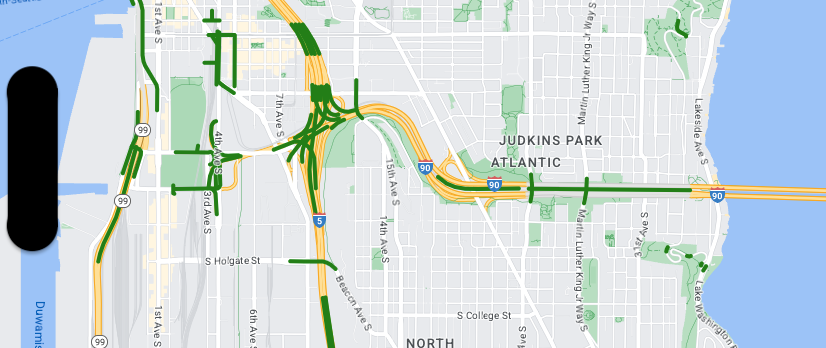

Esempio di applicazione di stili ai dati polilineari

Questo esempio mostra un approccio alla definizione dello stile degli elementi basati sulla geometria polilinea.

Applica lo stile alle funzionalità che rappresentano polilinee.

Informazioni sul set di dati

Il set di dati utilizzato in questo esempio mostra i ponti nell'area di Seattle. Il seguente estratto dal file GeoJSON del set di dati mostra una voce di funzionalità rappresentativa.

{
  "type": "Feature",
  "properties": {
      "OBJECTID": 1,
      "COMPTYPE": 66,
      "COMPKEY": 515774,
      "HANSEGKEY": 489781,
      "UNITID": "BRG-935",
      "UNITTYPE": " ",
      "BRGUNITID": "BRG-935",
      "UNITDESC_BRG": "YALE AVE BR REV LANE OC                                                                                                                                                                                                                                        ",
      "UNITDESC_SEG": "HOWELL ST ON RP BETWEEN HOWELL ST AND I5 SB                                                                                                                                                                                                                    ",
      "INSTDATE": null,
      "EXPDATE": null,
      "STATUS": " ",
      "STATUSDT": null,
      "CONDITION": " ",
      "CONDDT": null,
      "OWN": " ",
      "LSTVERIFY": null,
      "MAINTBY": " ",
      "ADDBY": "GARCIAA",
      "ADDDTTM": "2010-01-21T00:00:00Z",
      "MODBY": null,
      "MODDTTM": null,
      "BR_NBR": 935,
      "BR_CODE": " 935",
      "BR_TYPE": "ST",
      "BR_NAME": "YALE AVE BR REV LANE OC",
      "BR_FACILITIES": "YALE AVE-SR 5 ON RAMP",
      "BR_FEATURES": "SR 5 REV LANE",
      "BR_RATING": 0,
      "BR_INSET": 1,
      "BR_GEO": "DT",
      "BR_OWNER": "DOT",
      "BR_OWNER_NAME": "State of Washington",
      "GEOBASID": 0,
      "XGEOBASID": 0,
      "GISSEGKEY": 489781,
      "EARTHQUAKE_RESPONSE_TEAM": " ",
      "SHAPE_Length": 220.11891836147655
  },
  "geometry": {
      "type": "LineString",
      "coordinates": [
          [
              -122.329201929090928,
              47.616910448708538
          ],
          [
              -122.329206483407461,
              47.616976719821004
          ],
          [
              -122.32921802149356,
              47.617042137515213
          ],
          [
              -122.329236413912909,
              47.617105967923777
          ],
          [
              -122.329261454336034,
              47.617167494985758
          ],
          [
              -122.329292861855023,
              47.617226028479571
          ],
          [
              -122.329330284134699,
              47.617280911766009
          ],
          [
              -122.329373301365223,
              47.617331529154569
          ],
          [
              -122.329421430971635,
              47.617377312810319
          ],
          [
              -122.329474133027375,
              47.617417749124023
          ],
          [
              -122.32953081631139,
              47.617452384473893
          ]
      ]
  }
},

Applicare lo stile alle funzionalità dei dati polilineari

Il seguente snippet applica lo stesso stile direttamente a tutte le funzionalità dei dati.

Swift

// Define a style with green fill and stroke.
// Apply the style to the datasets features.
layer.style = { feature in
  let style = MutableFeatureStyle()
  style.fillColor = .green.withAlphaComponent(0.5);
  style.strokeColor = [UIColor greenColor];
  style.strokeWidth = 2.0;
  return style
}

Objective-C

// Define a style with green fill and stroke.
// Apply the style to the datasets features.
layer.style = ^(GMSDatasetFeature *feature) {
  GMSMutableFeatureStyle *style = [GMSMutableFeatureStyle style];
  style.fillColor = [[UIColor greenColor] colorWithAlphaComponent:0.5];
  style.strokeColor = [UIColor greenColor];
  style.strokeWidth = 2.0;
  return style;
};
