This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an iOS app.
Supported integrations and ad formats
The mediation adapter for Pangle has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | 1 |
Formats | |
App open | 2 |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native |
2 Bidding integration for this format is in closed beta.
Requirements
- iOS deployment target of 10.0 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Pangle UI
Sign up or Log in to your Pangle account.
Add a new application
Navigate to the Applications tab and click the Add App button.
Select the Operating System you wish to create an application for and fill out the rest of the form. Then, click Submit.
Take note of your application's App ID.
Create an ad placement
Once your application has been created, click the Add button to create your ad placement.
Bidding
Select your Ad Format and Ad Placement Name, and select In-App Bidding as the Pricing Type. Fill out the rest of the form and click Submit.
Once your ad placement is created, take note of the Ad Placement ID.
Waterfall
Select your Ad Format and Ad Placement Name, and Global CPM as the Pricing Type. Fill out the rest of the form and click Submit.
Once your ad placement is created, take note of the Ad Placement ID.
Turn on test mode
Follow the instructions in Pangle's How to add a Test Ad guide on how to enable Pangle test ads.
Step 2: Set up Pangle demand in Ad Manager UI
Accede a tu cuenta de Ad Manager.
Agregar Pangle en Empresas
Ofertas
Este paso no es obligatorio para las integraciones de ofertas.
Cascada
Navega a Administrador > Empresas y, luego, haz clic en el botón Nueva empresa en la pestaña Todas las empresas. Selecciona Red de publicidad.
Selecciona Pangle como la Red de publicidad, ingresa un Nombre único y habilita la Mediación.
No es necesario que ingreses un nombre de usuario ni una contraseña. Haz clic en Save cuando termines.
Habilitar el uso compartido de indicadores seguros
Ofertas
Navega a Administrador > Configuración global. Ve a la pestaña Configuración de la cuenta de Ad Exchange, revisa y activa Uso compartido de indicadores seguros. Haz clic en Guardar.
Cascada
Este paso no es obligatorio para las integraciones en cascada.
Configura las Pangle ofertas
Ofertas
Navega a Publicación > Ofertantes y haz clic en Nuevo ofertante en la pestaña Ofertas de SDK.
Selecciona Pangle como ofertante.
Activa Agregar la biblioteca de indicadores de este ofertante a la lista de indicadores permitidos y Permitir que se compartan indicadores con este ofertante. Luego, haz clic en Continuar.
Haz clic en Continuar.
Haz clic en Listo.
Cascada
Este paso no es obligatorio para las integraciones en cascada.
Configura la asignación de unidades de anuncios
Ofertas
Navega a Publicación > Ofertantes y selecciona la empresa dePangle en la pestaña Ofertas de SDK.
Ve a la pestaña Asignación de unidades de anuncios y haz clic en Nueva asignación de unidades de anuncios.
Elige Unidad de anuncios específica. Selecciona una unidad de anuncios y un formato, Aplicación para dispositivos móviles como el Tipo de inventario y tu Aplicación para dispositivos móviles. Luego, ingresa losApp ID and Ad Placement ID obtenidos en la sección anterior. Por último, haz clic en Guardar.
Cascada

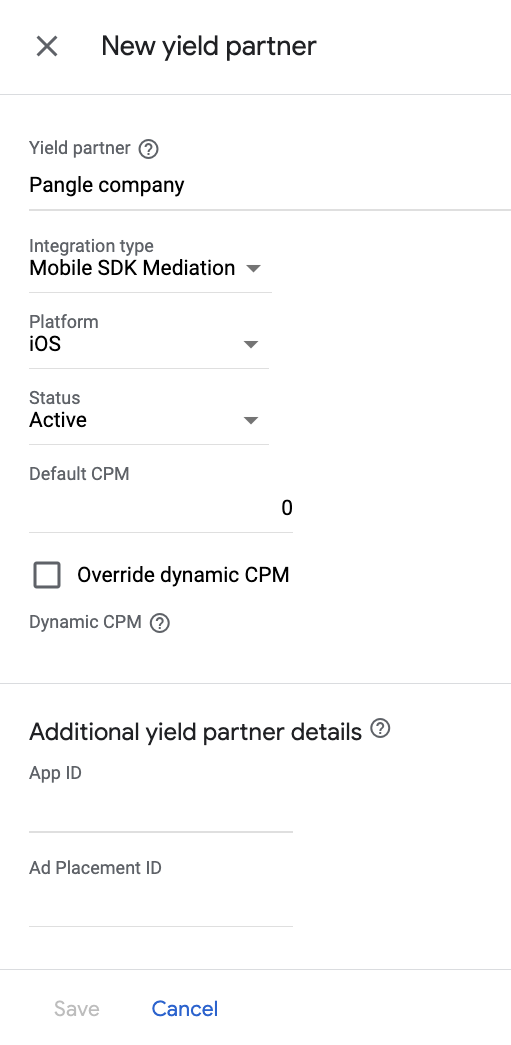

Navega a Publicación > Grupos de rendimiento y haz clic en el botón Nuevo grupo de rendimiento. Selecciona tu Aplicación para dispositivos móviles.
Desplázate hacia abajo y haz clic en Agregar socio de rendimiento.
Selecciona la empresa para la que creaste Pangle en la sección anterior. Elige Mediación del SDK para dispositivos móviles como el Tipo de integración, iOS como la Plataforma y Activo como el Estado.
Ingresa el App ID and Ad Placement ID obtenido en la sección anterior y el valor de CPM predeterminado. Haz clic en Guardar.
Step 3: Import the Pangle SDK and adapter
Using CocoaPods (recommended)
Add the following line to your project's Podfile:
pod 'GoogleMobileAdsMediationPangle'
From the command line run:
pod install --repo-update
Manual integration
- Download the latest version of the
Pangle SDK for iOS
and link all the
.framework
files and bundles in your project. - Download the latest version of the Pangle adapter from the download link in
the Changelog and link
PangleAdapter.xcframework
in your project.
Step 4: Add required code
SKAdNetwork integration
Follow Pangle's documentation
to add the SKAdNetwork identifiers to your project's Info.plist
file.
Step 5: Test your implementation
Habilitar anuncios de prueba
Asegúrate de registrar tu dispositivo de prueba en Ad Manager y habilitar el modo de prueba en la Pangle IU.
Cómo verificar los anuncios de prueba
Para verificar que recibes anuncios de prueba dePangle, habilita las pruebas de fuentes de anuncios individuales en el inspector de anuncios mediante la Pangle (Bidding) and Pangle (Waterfall) fuente de anuncios.
Optional Steps
Native ads
Ad rendering
The Pangle adapter returns its native ads as
GADNativeAd
objects. It populates the following
fields
for a
GADNativeAd
.
Field | Assets always included by Pangle adapter |
---|---|
Headline | |
Image | 1 |
Body | |
Icon | |
Call to action | |
Star rating | |
Store | |
Price | |
Advertiser |
1 The Pangle adapter does not
provide direct access to the main image asset for its native ads. Instead, the
adapter populates the
GADMediaView
with a video or an image.
Error codes
If the adapter fails to receive an ad from Pangle, you can check the
underlying error from the ad response using
GADResponseInfo.adNetworkInfoArray
under the following classes:
GADMediationAdapterPangle
Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
101 | com.google.ads.mediation.pangle | Invalid server parameters (e.g. Missing app ID or placement ID). |
102 | com.google.ads.mediation.pangle | The requested ad size does not match a Pangle supported banner size. |
-1-60000 | Sent by Pangle SDK | Pangle SDK returned an error. See Pangle's documentation for more details. |
Pangle iOS Mediation Adapter Changelog
Version 6.1.0.5.0
- Verified compatibility with Pangle SDK version 6.1.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.5.
Version 6.1.0.4.0
- Verified compatibility with Pangle SDK version 6.1.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.4.
Version 6.0.0.6.0
- Verified compatibility with Pangle SDK version 6.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.0.0.6.
Version 6.0.0.5.0
- Verified compatibility with Pangle SDK version 6.0.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.5.
Version 6.0.0.4.0
- Verified compatibility with Pangle SDK version 6.0.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.4.
Version 5.9.0.9.0
- Verified compatibility with Pangle SDK version 5.9.0.9.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 5.9.0.9.
Version 5.9.0.8.0
- Verified compatibility with Pangle SDK version 5.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 11.4.0.
- Pangle SDK version 5.9.0.8.
Version 5.9.0.7.0
- Verified compatibility with Pangle SDK version 5.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 11.3.0.
- Pangle SDK version 5.9.0.7.
Version 5.8.0.8.0
- Verified compatibility with Pangle SDK version 5.8.0.8.
- Updated adapter to use new Pangle SDK signal collection API.
Built and tested with:
- Google Mobile Ads SDK version 11.2.0.
- Pangle SDK version 5.8.0.8.
Version 5.8.0.7.0
- Verified compatibility with Pangle SDK version 5.8.0.7.
- Now requires minimum iOS version 12.0.
- Now requires Google Mobile Ads SDK version 11.0 or higher.
- Included
Info.plist
in the frameworks withinPangleAdapter.xcframework
.
Built and tested with:
- Google Mobile Ads SDK version 11.0.1.
- Pangle SDK version 5.8.0.7.
Version 5.7.0.7.0
- Verified compatibility with Pangle SDK version 5.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.7.
Version 5.7.0.6.0
- Verified compatibility with Pangle SDK version 5.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.6.
Version 5.6.0.8.0
- Verified compatibility with Pangle SDK version 5.6.0.8.
- Refactored the
+setCOPPA
method by replacing the deprecatedadConfiguration.childDirectedTreatment
property with the newGADMobileAds.sharedInstance.requestConfiguration.tagForChildDirectedTreatment
property.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.6.0.8.
Version 5.5.0.9.0
- Verified compatibility with Pangle SDK version 5.5.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.13.0.
- Pangle SDK version 5.5.0.9.
Version 5.5.0.7.0
- Verified compatibility with Pangle SDK version 5.5.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.12.0.
- Pangle SDK version 5.5.0.7.
Version 5.5.0.5.0
- Verified compatibility with Pangle SDK version 5.5.0.5.
Built and tested with:
- Google Mobile Ads SDK version 10.11.0.
- Pangle SDK version 5.5.0.5.
Version 5.4.1.1.0
- Added bidding support for app open ad format.
- Verified compatibility with Pangle SDK version 5.4.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.10.0.
- Pangle SDK version 5.4.1.1.
Version 5.4.0.9.0
- Verified compatibility with Pangle SDK version 5.4.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.9.
Version 5.4.0.8.0
- Fixed an issue where
GADPangleNetworkExtras
did not conform toGADAdNetworkExtras
protocol. - Implemented
adDidShowFail
protocol method in interstitial, rewarded, and app open ads. - Verified compatibility with Pangle SDK version 5.4.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.8.
Version 5.3.1.2.0
- Verified compatibility with Pangle SDK version 5.3.1.2.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.2.
Version 5.3.1.0.0
- Verified compatibility with Pangle SDK version 5.3.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.0.
Version 5.2.1.1.0
- Verified compatibility with Pangle SDK version 5.2.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.7.0.
- Pangle SDK version 5.2.1.1.
Version 5.2.0.9.0
- Verified compatibility with Pangle SDK version 5.2.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.9.
Version 5.2.0.8.0
- Verified compatibility with Pangle SDK version 5.2.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.8.
Version 5.2.0.7.0
- Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
- Verified compatibility with Pangle SDK version 5.2.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.7.
Version 5.2.0.6.0
- Verified compatibility with Pangle SDK version 5.2.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.6.
Version 5.1.1.0.0
- Verified compatibility with Pangle SDK version 5.1.1.0.
- Added support for the
arm64
simulator architecture. - Now requires Google Mobile Ads SDK version 10.4.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.4.0.
- Pangle SDK version 5.1.1.0.
Version 5.1.0.6.0
- Verified compatibility with Pangle SDK version 5.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.3.0.
- Pangle SDK version 5.1.0.6.
Version 5.0.1.0.0
- Verified compatibility with Pangle SDK version 5.0.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.1.0.
Version 5.0.0.8.0
- Verified compatibility with Pangle SDK version 5.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.0.8.
Version 5.0.0.7.0
- Verified compatibility with Pangle SDK version 5.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.7.
Version 5.0.0.6.0
- Verified compatibility with Pangle SDK version 5.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.6.
Version 4.9.1.0.0
- Removed support for the
armv7
architecture. - Verified compatibility with Pangle SDK version 4.9.1.0.
- Now requires minimum iOS version of 12.0.
- Now requires Google Mobile Ads SDK version 10.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.0.0.
- Pangle SDK version 4.9.1.0.
Version 4.9.0.8.0
- Verified compatibility with Pangle SDK version 4.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.8.
Version 4.9.0.7.0
- Verified compatibility with Pangle SDK version 4.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.7.
Version 4.9.0.6.0
- Verified compatibility with Pangle SDK version 4.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.6.
Version 4.8.1.0.0
- Verified compatibility with Pangle SDK version 4.8.1.0.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.8.1.0.
Version 4.8.0.9.0
- Verified compatibility with Pangle SDK version 4.8.0.9.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.9.
Version 4.8.0.7.0
- Verified compatibility with Pangle SDK version 4.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.7.
Version 4.8.0.6.0
- Verified compatibility with Pangle SDK version 4.8.0.6.
- Fixed an issue where the main thread was blocked when loading native ad icon image.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.6.
Version 4.7.0.7.0
- Verified compatibility with Pangle SDK version 4.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.7.
Version 4.7.0.6.0
- Verified compatibility with Pangle SDK version 4.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.6.
Version 4.7.0.5.0
- Verified compatibility with Pangle SDK version 4.7.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.5.
Version 4.7.0.4.0
- Verified compatibility with Pangle SDK version 4.7.0.4.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.7.0.4.
Version 4.6.2.2.0
- Renamed the
setGDPR()
andsetCCPA()
methods from theGADMediationAdapterPangle
class tosetGDPRConsent()
andsetDoNotSell
respectively. - Verified compatibility with Pangle SDK version 4.6.2.2.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.6.2.2.
Version 4.6.1.8.0
- Verified compatibility with Pangle SDK version 4.6.1.8.
- Added bidding support for native ad format.
- Updated the adapter to use the
didRewardUser
API. - Now requires Google Mobile Ads SDK version 9.8.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 9.9.0.
- Pangle SDK version 4.6.1.8.
Version 4.5.2.8.0
- Verified compatibility with Pangle SDK version 4.5.2.8.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.8.
Version 4.5.2.7.0
- Verified compatibility with Pangle SDK version 4.5.2.7.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.7.
Version 4.5.2.5.0
- Verified compatibility with Pangle SDK version 4.5.2.5.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.5.
Version 4.5.2.4.0
- Verified compatibility with Pangle SDK version 4.5.2.4.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.4.
Version 4.5.2.3.0
- Verified compatibility with Pangle SDK version 4.5.2.3.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.3.
Version 4.5.1.3.0
- Verified compatibility with Pangle SDK version 4.5.1.3.
Built and tested with:
- Google Mobile Ads SDK version 9.5.0.
- Pangle SDK version 4.5.1.3.
Version 4.3.1.9.0
- Verified compatibility with Pangle SDK version 4.3.1.9.
Built and tested with:
- Google Mobile Ads SDK version 9.3.0.
- Pangle SDK version 4.3.1.9.
Version 4.3.0.5.0
- Verified compatibility with Pangle SDK version 4.3.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.2.0.
- Pangle SDK version 4.3.0.5.
Version 4.3.0.4.0
- Initial release!
- Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.
Built and tested with:
- Google Mobile Ads SDK version 9.1.0.
- Pangle SDK version 4.3.0.4.
