Augmented Faces developer guide for Android
Stay organized with collections
Save and categorize content based on your preferences.
Learn how to use the Augmented Faces feature in your own apps.
Prerequisites
Make sure that you understand fundamental AR concepts
and how to configure an ARCore session before proceeding.
Using Augmented Faces in Android
- Configure the ARCore session
- Get access to the detected face
Select the front camera in an existing ARCore session to start using Augmented Faces. Note that selecting the front camera
will cause a number of changes
in ARCore behavior.
Java
// Set a camera configuration that usese the front-facing camera.
CameraConfigFilter filter =
new CameraConfigFilter(session).setFacingDirection(CameraConfig.FacingDirection.FRONT);
CameraConfig cameraConfig = session.getSupportedCameraConfigs(filter).get(0);
session.setCameraConfig(cameraConfig);
Kotlin
// Set a camera configuration that usese the front-facing camera.
val filter = CameraConfigFilter(session).setFacingDirection(CameraConfig.FacingDirection.FRONT)
val cameraConfig = session.getSupportedCameraConfigs(filter)[0]
session.cameraConfig = cameraConfig
Enable AugmentedFaceMode:
Java
Config config = new Config(session);
config.setAugmentedFaceMode(Config.AugmentedFaceMode.MESH3D);
session.configure(config);
Kotlin
val config = Config(session)
config.augmentedFaceMode = Config.AugmentedFaceMode.MESH3D
session.configure(config)

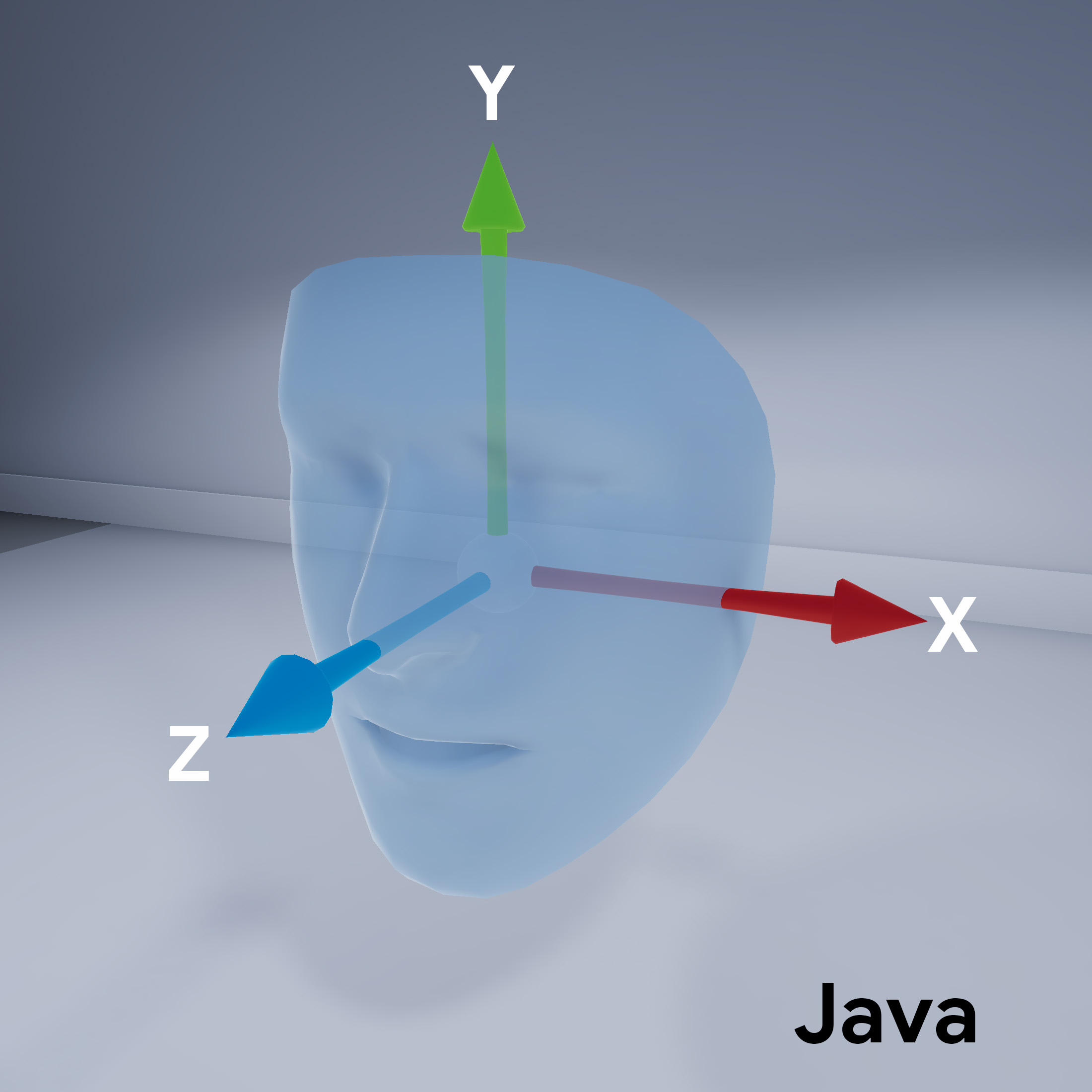

Face mesh orientation
Note the orientation of the face mesh:
![]()
Access the detected face
Get a Trackable
for each frame. A Trackable is something that ARCore can track and that
Anchors can be attached to.
Java
// ARCore's face detection works best on upright faces, relative to gravity.
Collection<AugmentedFace> faces = session.getAllTrackables(AugmentedFace.class);
Kotlin
// ARCore's face detection works best on upright faces, relative to gravity.
val faces = session.getAllTrackables(AugmentedFace::class.java)
Get the TrackingState
for each Trackable. If it is TRACKING,
then its pose is currently known by ARCore.
Java
for (AugmentedFace face : faces) {
if (face.getTrackingState() == TrackingState.TRACKING) {
// UVs and indices can be cached as they do not change during the session.
FloatBuffer uvs = face.getMeshTextureCoordinates();
ShortBuffer indices = face.getMeshTriangleIndices();
// Center and region poses, mesh vertices, and normals are updated each frame.
Pose facePose = face.getCenterPose();
FloatBuffer faceVertices = face.getMeshVertices();
FloatBuffer faceNormals = face.getMeshNormals();
// Render the face using these values with OpenGL.
}
}
Kotlin
faces.forEach { face ->
if (face.trackingState == TrackingState.TRACKING) {
// UVs and indices can be cached as they do not change during the session.
val uvs = face.meshTextureCoordinates
val indices = face.meshTriangleIndices
// Center and region poses, mesh vertices, and normals are updated each frame.
val facePose = face.centerPose
val faceVertices = face.meshVertices
val faceNormals = face.meshNormals
// Render the face using these values with OpenGL.
}
}
