Augmented reality with <model-viewer>

The <model-viewer> web component can be used to view and interact with 3D models on the web, and it seamlessly transitions to placing and interacting with those 3D models in Augmented Reality on the web.

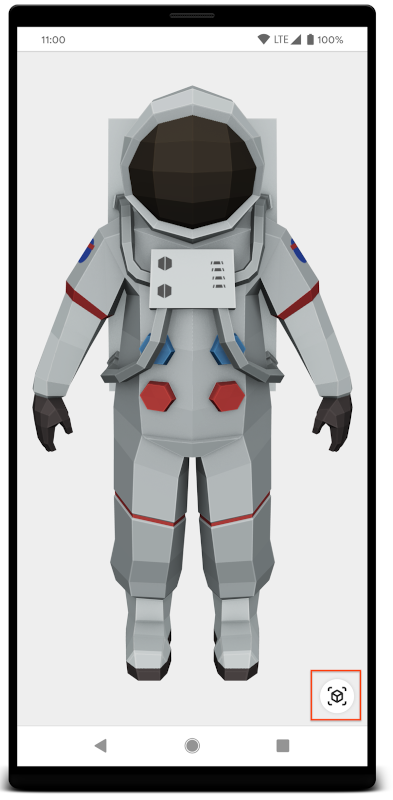

When viewed on an ARCore-supported Android device, a <model-viewer> component with the ar attribute displays a button as shown in the following example:

Model Viewer Screenshot

Tapping this button on ARCore-supported devices will display the model using Chrome's WebXR functionality or the Scene Viewer app, depending on the value of the ar-modes attribute.

The appearance of the AR button can be customized by using web component slots. Refer to the <model-viewer> documentation for an example.

Getting started with <model-viewer>

The following steps show how to get started with <model-viewer> on any webpage.

Add the <model-viewer> dependency

From unpkg CDN

<script type="module" src=""></script>

From npm

npm install @google/model-viewer

Then, add <model-viewer> at node_modules/model-viewer/dist/model-viewer.min.js using your preferred bundler,

Include the <model-viewer> tag

Add the <model-viewer> web component to your HTML document:

<model-viewer src=""
              alt="A 3D model of an astronaut"

Configure the <model-viewer> tag

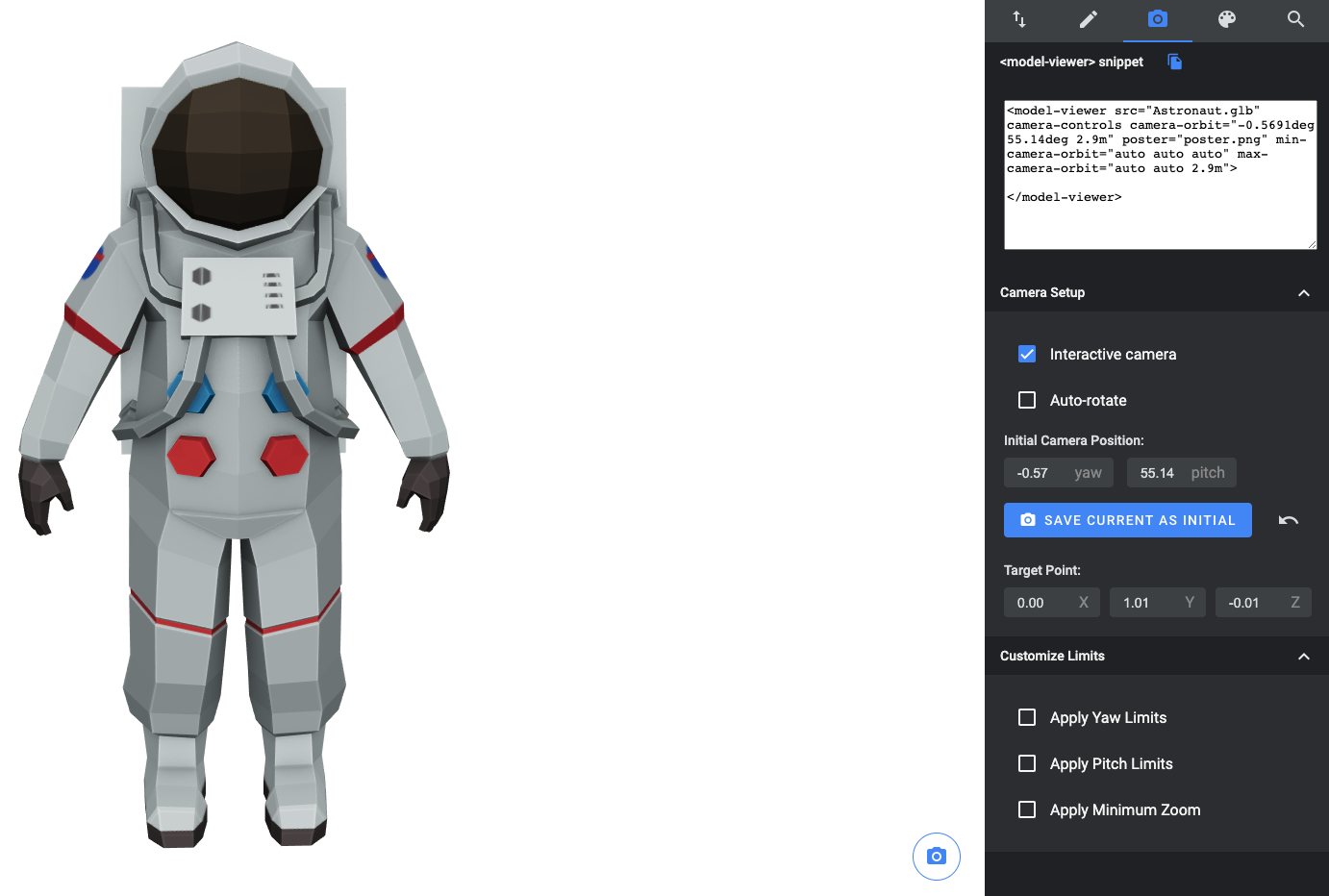

The model display can be configured by changing the attributes on the <model-viewer> tag. These properties expose options such as camera movement, model animations, and environment information. The <model-viewer> documentation lists all attributes that can be set. The Model Editor utility can generate a <model-viewer> HTML tag and configure properties such as camera position and lighting.

Model Editor Screenshot

Model compatibility

Models in the gltf and glb file format are supported by <model-viewer>. Refer to the three.js GLTFLoader documentation for a list of supported glTF extensions.

To ensure that your model will display properly, check your model in Model Editor.

Browser and device support

Using <model-viewer> to display 3D models in a web page is supported in all evergreen browsers. We recommend using a :focus-visible polyfill to hide focus rings when the element is focused.

AR features require an ARCore-supported device and an installation of Google Play Services for AR. For the webxr AR mode, refer to WebXR browser support. By default, if WebXR is not supported, Scene Viewer will be used instead.
