Android 適用的擴增臉部開發人員指南
透過集合功能整理內容
你可以依據偏好儲存及分類內容。
瞭解如何在你的應用程式中使用擴增臉孔功能。
必要條件
請務必瞭解基本 AR 概念
以及如何在繼續操作前設定 ARCore 工作階段。
在 Android 中使用擴增臉孔
- 設定 ARCore 工作階段
- 使用系統偵測到的臉孔
在現有的 ARCore 工作階段中選取前置鏡頭，即可開始使用擴增臉孔。請注意，選取前置鏡頭
都會造成幾次變更
執行迴圈
Java
// Set a camera configuration that usese the front-facing camera.
CameraConfigFilter filter =
new CameraConfigFilter(session).setFacingDirection(CameraConfig.FacingDirection.FRONT);
CameraConfig cameraConfig = session.getSupportedCameraConfigs(filter).get(0);
session.setCameraConfig(cameraConfig);
Kotlin
// Set a camera configuration that usese the front-facing camera.
val filter = CameraConfigFilter(session).setFacingDirection(CameraConfig.FacingDirection.FRONT)
val cameraConfig = session.getSupportedCameraConfigs(filter)[0]
session.cameraConfig = cameraConfig
啟用 AugmentedFaceMode：
Java
Config config = new Config(session);
config.setAugmentedFaceMode(Config.AugmentedFaceMode.MESH3D);
session.configure(config);
Kotlin
val config = Config(session)
config.augmentedFaceMode = Config.AugmentedFaceMode.MESH3D
session.configure(config)

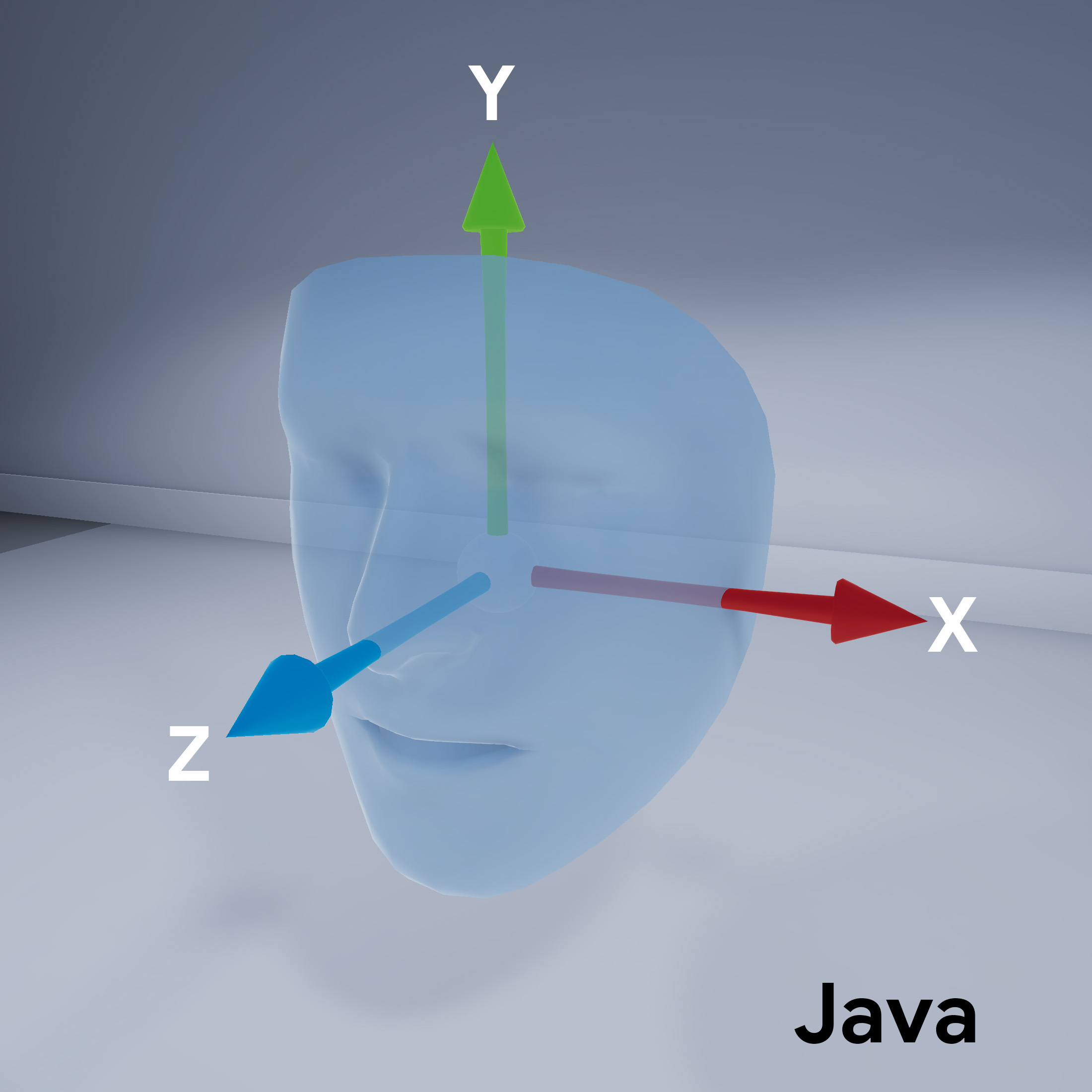

臉孔網格方向
請注意臉部網格的方向：
![]()
存取偵測到的臉孔
取得 Trackable
。Trackable 是 ARCore 可以追蹤的項目，且
錨點可附加至圖片。
Java
// ARCore's face detection works best on upright faces, relative to gravity.
Collection<AugmentedFace> faces = session.getAllTrackables(AugmentedFace.class);
Kotlin
// ARCore's face detection works best on upright faces, relative to gravity.
val faces = session.getAllTrackables(AugmentedFace::class.java)
取得 TrackingState
每個 Trackable。如果是 TRACKING，
那麼 ARCore 就能知道它的姿勢。
Java
for (AugmentedFace face : faces) {
if (face.getTrackingState() == TrackingState.TRACKING) {
// UVs and indices can be cached as they do not change during the session.
FloatBuffer uvs = face.getMeshTextureCoordinates();
ShortBuffer indices = face.getMeshTriangleIndices();
// Center and region poses, mesh vertices, and normals are updated each frame.
Pose facePose = face.getCenterPose();
FloatBuffer faceVertices = face.getMeshVertices();
FloatBuffer faceNormals = face.getMeshNormals();
// Render the face using these values with OpenGL.
}
}
Kotlin
faces.forEach { face ->
if (face.trackingState == TrackingState.TRACKING) {
// UVs and indices can be cached as they do not change during the session.
val uvs = face.meshTextureCoordinates
val indices = face.meshTriangleIndices
// Center and region poses, mesh vertices, and normals are updated each frame.
val facePose = face.centerPose
val faceVertices = face.meshVertices
val faceNormals = face.meshNormals
// Render the face using these values with OpenGL.
}
}
除非另有註明，否則本頁面中的內容是採用創用 CC 姓名標示 4.0 授權，程式碼範例則為阿帕契 2.0 授權。詳情請參閱《Google Developers 網站政策》。Java 是 Oracle 和/或其關聯企業的註冊商標。
上次更新時間：2025-07-26 (世界標準時間)。
