控制攝影機位置

地圖檢視是模擬成一部向下俯瞰平面的相機。攝影機的位置 (以及連帶的地圖算繪方式) 是由下列屬性來指定：latitude、longitude、altitude、heading、tilt、range 和 fov。

攝影機目標是地圖的中心位置，透過經緯度座標指定。您可以透過兩種方式指定攝影機的位置：

依目標點：使用 center 屬性，在地圖上指定攝影機應朝向的座標。如果想確保地標或區域在前景運作，這個方法最適合。
依攝影機座標：使用 cameraPosition 屬性，將攝影機放置在特定經緯度和海拔高度座標。這非常適合定義精確的視點。

從邏輯上來看，center 和 cameraPosition 是連結在一起的。設定其中一個值後，系統會根據攝影機的方向和距離自動計算另一個值。無論使用哪種定位方法，tilt、heading 和 roll 等屬性都會控制相機的對焦方式。

在下列範例中，您可以在 center (攝影機對準地圖中心) 和 cameraPosition (攝影機位於地圖中心) 之間切換。

查看完整範例原始碼

TypeScript

async function init(): Promise<void> {
    // Import the needed libraries.
    await google.maps.importLibrary('maps3d');

    const map3DElement = document.querySelector('gmp-map-3d')!;
    const btn = document.getElementById('switch-mode-btn') as HTMLButtonElement;

    const initialCenter = { lat: 40.7860524, lng: -73.9634983, altitude: 0 };
    let isCenterMode = true;

    btn.addEventListener('click', () => {
        if (isCenterMode) {
            // Switch to Camera Position Mode.
            // Place the camera at the marker's location, but 50m up in the air
            map3DElement.cameraPosition = { ...initialCenter, altitude: 50 };
            map3DElement.tilt = 80;

            btn.textContent = 'Switch to Center Mode';
            isCenterMode = false;
        } else {
            // Revert back to Center Mode (looking AT the marker)
            map3DElement.center = initialCenter;
            map3DElement.tilt = 70;
            map3DElement.range = 1500; // Restore the original range value.

            btn.textContent = 'Switch to Camera Position';
            isCenterMode = true;
        }
    });
}

void init();index.ts

JavaScript

async function init() {
    // Import the needed libraries.
    await google.maps.importLibrary('maps3d');

    const map3DElement = document.querySelector('gmp-map-3d');
    const btn = document.getElementById('switch-mode-btn');

    const initialCenter = { lat: 40.7860524, lng: -73.9634983, altitude: 0 };
    let isCenterMode = true;

    btn.addEventListener('click', () => {
        if (isCenterMode) {
            // Switch to Camera Position Mode.
            // Place the camera at the marker's location, but 50m up in the air
            map3DElement.cameraPosition = { ...initialCenter, altitude: 50 };
            map3DElement.tilt = 80;

            btn.textContent = 'Switch to Center Mode';
            isCenterMode = false;
        } else {
            // Revert back to Center Mode (looking AT the marker)
            map3DElement.center = initialCenter;
            map3DElement.tilt = 70;
            map3DElement.range = 1500; // Restore the original range value.

            btn.textContent = 'Switch to Camera Position';
            isCenterMode = true;
        }
    });
}

void init();index.js

CSS

html,
body {
    height: 100%;
    margin: 0;
    padding: 0;
}

#ui-container {
    position: absolute;
    top: 20px;
    left: 20px;
    z-index: 10;
}

button {
    background: rgba(15, 23, 42, 0.75);
    backdrop-filter: blur(12px);
    -webkit-backdrop-filter: blur(12px);
    border: 1px solid rgba(255, 255, 255, 0.1);
    color: #f8fafc;
    padding: 12px 20px;
    border-radius: 8px;
    cursor: pointer;
    font-size: 0.9rem;
    font-weight: 600;
    transition: all 0.2s ease;
    box-shadow: 0 8px 32px 0 rgba(0, 0, 0, 0.37);
}

button:hover {
    background: rgba(56, 189, 248, 0.2);
    border-color: rgba(56, 189, 248, 0.4);
    transform: translateY(-1px);
}

button:active {
    transform: translateY(0);
}
style.css

HTML

<html>
    <head>
        <title>3D Camera Position</title>

        <link rel="stylesheet" type="text/css" href="./style.css" />
        <script type="module" src="./index.js"></script>
        <script>
            // prettier-ignore
            (g=>{var h,a,k,p="The Google Maps JavaScript API",c="google",l="importLibrary",q="__ib__",m=document,b=window;b=b[c]||(b[c]={});var d=b.maps||(b.maps={}),r=new Set,e=new URLSearchParams,u=()=>h||(h=new Promise(async(f,n)=>{await (a=m.createElement("script"));e.set("libraries",[...r]+"");for(k in g)e.set(k.replace(/[A-Z]/g,t=>"_"+t[0].toLowerCase()),g[k]);e.set("callback",c+".maps."+q);a.src=`https://maps.${c}apis.com/maps/api/js?`+e;d[q]=f;a.onerror=()=>h=n(Error(p+" could not load."));a.nonce=m.querySelector("script[nonce]")?.nonce||"";m.head.append(a)}));d[l]?console.warn(p+" only loads once. Ignoring:",g):d[l]=(f,...n)=>r.add(f)&&u().then(()=>d[l](f,...n))})({
                key: "AIzaSyA6myHzS10YXdcazAFalmXvDkrYCp5cLc8"
            });
        </script>
    </head>

    <body>
        <gmp-map-3d
            center="40.7860524,-73.9634983"
            range="1500"
            tilt="70"
            heading="-150"
            mode="satellite">
            <gmp-marker
                position="40.7860524,-73.9634983"
                altitude-mode="clamp-to-ground"></gmp-marker>
        </gmp-map-3d>

        <div id="ui-container">
            <button id="switch-mode-btn" type="button">
                Switch to Camera Position
            </button>
        </div>
    </body>
</html>index.html

試用範例

JSFiddle.net

視野和範圍

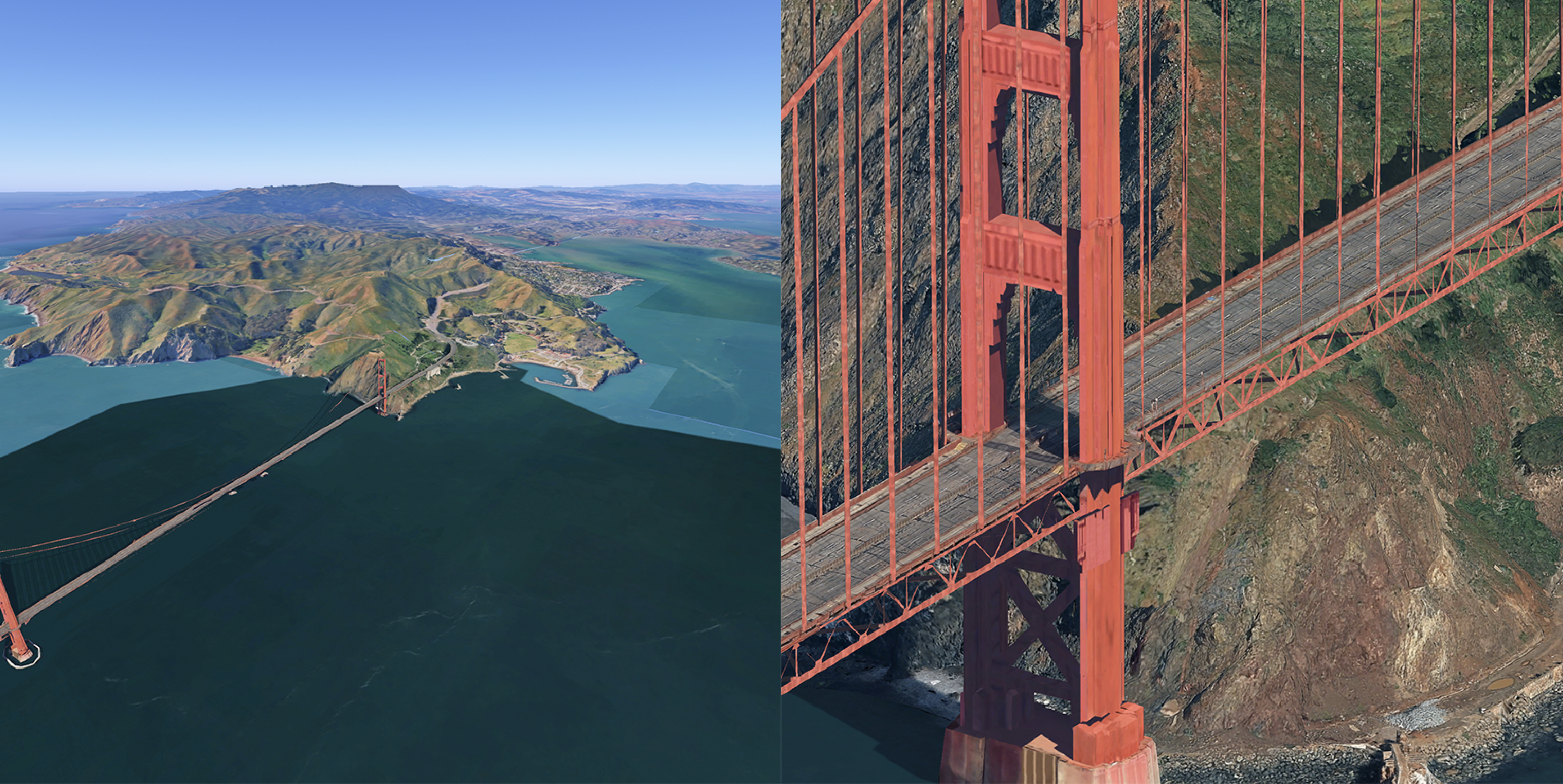

在 3D 環境中，「縮放」的概念是由兩個不同的參數控制：range 和 fov (視野)。兩者都會影響地圖上大型物件的顯示大小，但使用的機制不同：

range：相機與聚焦點之間的實際距離。調整範圍就像是將攝影機靠近或遠離拍攝主體。
fov：相機鏡頭的垂直角度，以度為單位。調整視野範圍相當於更換相機鏡頭。值越高 (最多 80 度)，越像廣角鏡頭，可顯示更多周邊畫面；值越低 (最少 5 度)，越像望遠鏡頭，可縮小焦點。

您可以透過下列範例進行實驗，瞭解各種地圖和攝影機定位選項如何搭配運作。使用 UI 滑桿設定參數，或直接與地圖和地圖控制項互動。產生的參數會新增至 gmp-map-3d 元素，您可以複製並重複使用。

查看完整範例原始碼

TypeScript

async function initMap(): Promise<void> {
    // Declare the needed libraries.
    await google.maps.importLibrary('maps3d');

    const map3DElement = document.querySelector('gmp-map-3d')!;

    // Elements from HTML
    const headingSlider = document.getElementById(
        'heading'
    ) as HTMLInputElement;
    const tiltSlider = document.getElementById('tilt') as HTMLInputElement;
    const rangeSlider = document.getElementById('range') as HTMLInputElement;
    const latSlider = document.getElementById('lat') as HTMLInputElement;
    const lngSlider = document.getElementById('lng') as HTMLInputElement;
    const fovSlider = document.getElementById('fov') as HTMLInputElement;
    const rollSlider = document.getElementById('roll') as HTMLInputElement;

    const headingVal = document.getElementById('heading-val') as HTMLElement;
    const tiltVal = document.getElementById('tilt-val') as HTMLElement;
    const rangeVal = document.getElementById('range-val') as HTMLElement;
    const altitudeVal = document.getElementById('altitude-val') as HTMLElement;
    const fovVal = document.getElementById('fov-val') as HTMLElement;
    const rollVal = document.getElementById('roll-val') as HTMLElement;
    const codeElem = document.getElementById('generated-code') as HTMLElement;
    const copyBtn = document.getElementById('copy-btn') as HTMLButtonElement;

    let currentAltitude = 30;
    let isUserInteracting = false;

    // Update values on UI when the map changes.
    const updateUI = () => {
        const heading = map3DElement.heading?.toFixed(0) ?? '0';
        const tilt = map3DElement.tilt?.toFixed(0) ?? '0';
        const range = map3DElement.range?.toFixed(0) ?? '0';
        const rawFov = parseFloat(map3DElement.fov?.toFixed(0) ?? '45');
        const fovClamped = Math.min(80, Math.max(5, rawFov));
        const fov = fovClamped.toString();
        const roll = map3DElement.roll?.toFixed(0) ?? '0';
        const center = map3DElement.center;
        const mode = map3DElement.mode;

        headingVal.textContent = heading;
        tiltVal.textContent = tilt;
        rangeVal.textContent = range;
        fovVal.textContent = fov;
        rollVal.textContent = roll;

        if (!isUserInteracting) {
            fovSlider.value = fov;
            headingSlider.value = heading;
            tiltSlider.value = tilt;
            rangeSlider.value = Math.min(10000, parseFloat(range)).toString();
            rollSlider.value = roll;
        }

        if (center) {
            const lat = center.lat.toFixed(4);
            const lng = center.lng.toFixed(4);
            const alt = currentAltitude.toFixed(0);

            latSlider.value = lat;
            lngSlider.value = lng;
            altitudeVal.textContent = alt;

            codeElem.textContent = `<gmp-map-3d center="${lat},${lng},${alt}" mode="${mode}" tilt="${tilt}" range="${range}" heading="${heading}" fov="${fov}" roll="${roll}"></gmp-map-3d>`;
        }
    };

    // Copy generated HTML to clipboard.
    copyBtn.addEventListener('click', () => {
        void navigator.clipboard.writeText(codeElem.textContent || '');
        copyBtn.textContent = 'Copied!';
        setTimeout(() => {
            copyBtn.textContent = 'Copy HTML';
        }, 2000);
    });

    // Listen to slider changes using event delegation.
    const panel = document.querySelector('.panel') as HTMLElement;

    panel.addEventListener('input', (e) => {
        const target = e.target as HTMLInputElement;
        if (target.tagName !== 'INPUT') return;

        isUserInteracting = true;
        const prop = target.name;
        const val = parseFloat(target.value);

        if (prop === 'lat') {
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: val,
                    lng: currentCenter.lng,
                    altitude: currentCenter.altitude,
                };
            }
        } else if (prop === 'lng') {
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: currentCenter.lat,
                    lng: val,
                    altitude: currentCenter.altitude,
                };
            }
        } else if (prop === 'altitude') {
            currentAltitude = val;
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: currentCenter.lat,
                    lng: currentCenter.lng,
                    altitude: val,
                };
            }
        } else {
            map3DElement[prop] = val;
        }
        updateUI();
    });

    panel.addEventListener('change', (e) => {
        const target = e.target as HTMLInputElement;
        if (target.tagName === 'INPUT') {
            isUserInteracting = false;
        }
    });

    // Update UI on camera change events.
    map3DElement.addEventListener('gmp-headingchange', updateUI);
    map3DElement.addEventListener('gmp-tiltchange', updateUI);
    map3DElement.addEventListener('gmp-rangechange', updateUI);
    map3DElement.addEventListener('gmp-fovchange', updateUI);

    // Initial UI sync
    setTimeout(updateUI, 500);
}

void initMap();index.ts

JavaScript

async function initMap() {
    // Declare the needed libraries.
    await google.maps.importLibrary('maps3d');
    const map3DElement = document.querySelector('gmp-map-3d');
    // Elements from HTML
    const headingSlider = document.getElementById('heading');
    const tiltSlider = document.getElementById('tilt');
    const rangeSlider = document.getElementById('range');
    const latSlider = document.getElementById('lat');
    const lngSlider = document.getElementById('lng');
    const fovSlider = document.getElementById('fov');
    const rollSlider = document.getElementById('roll');
    const headingVal = document.getElementById('heading-val');
    const tiltVal = document.getElementById('tilt-val');
    const rangeVal = document.getElementById('range-val');
    const altitudeVal = document.getElementById('altitude-val');
    const fovVal = document.getElementById('fov-val');
    const rollVal = document.getElementById('roll-val');
    const codeElem = document.getElementById('generated-code');
    const copyBtn = document.getElementById('copy-btn');
    let currentAltitude = 30;
    let isUserInteracting = false;
    // Update values on UI when the map changes.
    const updateUI = () => {
        const heading = map3DElement.heading?.toFixed(0) ?? '0';
        const tilt = map3DElement.tilt?.toFixed(0) ?? '0';
        const range = map3DElement.range?.toFixed(0) ?? '0';
        const rawFov = parseFloat(map3DElement.fov?.toFixed(0) ?? '45');
        const fovClamped = Math.min(80, Math.max(5, rawFov));
        const fov = fovClamped.toString();
        const roll = map3DElement.roll?.toFixed(0) ?? '0';
        const center = map3DElement.center;
        const mode = map3DElement.mode;
        headingVal.textContent = heading;
        tiltVal.textContent = tilt;
        rangeVal.textContent = range;
        fovVal.textContent = fov;
        rollVal.textContent = roll;
        if (!isUserInteracting) {
            fovSlider.value = fov;
            headingSlider.value = heading;
            tiltSlider.value = tilt;
            rangeSlider.value = Math.min(10000, parseFloat(range)).toString();
            rollSlider.value = roll;
        }
        if (center) {
            const lat = center.lat.toFixed(4);
            const lng = center.lng.toFixed(4);
            const alt = currentAltitude.toFixed(0);
            latSlider.value = lat;
            lngSlider.value = lng;
            altitudeVal.textContent = alt;
            codeElem.textContent = `<gmp-map-3d center="${lat},${lng},${alt}" mode="${mode}" tilt="${tilt}" range="${range}" heading="${heading}" fov="${fov}" roll="${roll}"></gmp-map-3d>`;
        }
    };
    // Copy generated HTML to clipboard.
    copyBtn.addEventListener('click', () => {
        void navigator.clipboard.writeText(codeElem.textContent || '');
        copyBtn.textContent = 'Copied!';
        setTimeout(() => {
            copyBtn.textContent = 'Copy HTML';
        }, 2000);
    });
    // Listen to slider changes using event delegation.
    const panel = document.querySelector('.panel');
    panel.addEventListener('input', (e) => {
        const target = e.target;
        if (target.tagName !== 'INPUT')
            return;
        isUserInteracting = true;
        const prop = target.name;
        const val = parseFloat(target.value);
        if (prop === 'lat') {
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: val,
                    lng: currentCenter.lng,
                    altitude: currentCenter.altitude,
                };
            }
        }
        else if (prop === 'lng') {
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: currentCenter.lat,
                    lng: val,
                    altitude: currentCenter.altitude,
                };
            }
        }
        else if (prop === 'altitude') {
            currentAltitude = val;
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: currentCenter.lat,
                    lng: currentCenter.lng,
                    altitude: val,
                };
            }
        }
        else {
            map3DElement[prop] = val;
        }
        updateUI();
    });
    panel.addEventListener('change', (e) => {
        const target = e.target;
        if (target.tagName === 'INPUT') {
            isUserInteracting = false;
        }
    });
    // Update UI on camera change events.
    map3DElement.addEventListener('gmp-headingchange', updateUI);
    map3DElement.addEventListener('gmp-tiltchange', updateUI);
    map3DElement.addEventListener('gmp-rangechange', updateUI);
    map3DElement.addEventListener('gmp-fovchange', updateUI);
    // Initial UI sync
    setTimeout(updateUI, 500);
}
void initMap();index.js

CSS

html,
body {
    height: 100%;
    margin: 0;
    padding: 0;
    font-family:
        'Inter',
        -apple-system,
        BlinkMacSystemFont,
        'Segoe UI',
        Roboto,
        Oxygen,
        Ubuntu,
        Cantarell,
        'Open Sans',
        'Helvetica Neue',
        sans-serif;
    background-color: #0f172a;
    color: #e2e8f0;
}

gmp-map-3d {
    height: 100%;
    width: 100%;
}

/* Glassmorphism UI Overlay */
#ui-container {
    position: absolute;
    top: 20px;
    left: 20px;
    width: 320px;
    z-index: 10;
}

.panel {
    background: rgba(15, 23, 42, 0.75);
    backdrop-filter: blur(12px);
    -webkit-backdrop-filter: blur(12px);
    border: 1px solid rgba(255, 255, 255, 0.1);
    border-radius: 16px;
    padding: 24px;
    margin-top: 10px;
    box-shadow: 0 8px 32px 0 rgba(0, 0, 0, 0.37);
}

h1 {
    font-size: 1.25rem;
    font-weight: 700;
    margin: 0 0 4px 0;
    background: linear-gradient(to right, #38bdf8, #818cf8);
    -webkit-background-clip: text;
    -webkit-text-fill-color: transparent;
}

.sub-title {
    font-size: 0.85rem;
    color: #94a3b8;
    margin: 0 0 20px 0;
}

h2 {
    font-size: 0.95rem;
    font-weight: 600;
    margin: 16px 0 8px 0;
    color: #f8fafc;
}

.control-group {
    margin-bottom: 16px;
}

label {
    display: block;
    font-size: 0.85rem;
    margin-bottom: 6px;
    color: #cbd5e1;
}

span {
    font-weight: 600;
    color: #38bdf8;
}

.row {
    display: flex;
    gap: 12px;
}

.col {
    flex: 1;
}

input[type='number'] {
    font-family: 'Fira Code', monospace;
    background: rgba(15, 23, 42, 0.5);
    border: 1px solid rgba(255, 255, 255, 0.1);
    color: #f8fafc;
    padding: 4px 8px;
    border-radius: 6px;
    outline: none;
}

input[type='range'] {
    width: 100%;
    height: 4px;
    background: #334155;
    border-radius: 2px;
    outline: none;
    -webkit-appearance: none;
}

input[type='range']::-webkit-slider-thumb {
    -webkit-appearance: none;
    width: 16px;
    height: 16px;
    border-radius: 50%;
    background: #38bdf8;
    cursor: pointer;
    box-shadow: 0 0 8px rgba(56, 189, 248, 0.5);
    transition: all 0.2s ease;
}

input[type='range']::-webkit-slider-thumb:hover {
    transform: scale(1.2);
    background: #60a5fa;
}

.buttons {
    display: flex;
    flex-direction: column;
    gap: 8px;
}

button {
    background: rgba(51, 65, 85, 0.5);
    border: 1px solid rgba(255, 255, 255, 0.05);
    color: #f8fafc;
    padding: 10px 16px;
    border-radius: 8px;
    cursor: pointer;
    font-size: 0.85rem;
    font-weight: 500;
    transition: all 0.2s ease;
    text-align: left;
}

button:hover {
    background: rgba(56, 189, 248, 0.2);
    border-color: rgba(56, 189, 248, 0.4);
    transform: translateY(-1px);
}

button:active {
    transform: translateY(0);
}

.status-group p {
    font-size: 0.8rem;
    color: #94a3b8;
    margin: 4px 0;
    background: rgba(30, 41, 59, 0.5);
    padding: 6px 10px;
    border-radius: 6px;
    font-family: monospace;
}

.code-box {
    position: relative;
    background: rgba(15, 23, 42, 0.9);
    border-radius: 8px;
    border: 1px solid rgba(255, 255, 255, 0.05);
    margin-top: 8px;
}

pre {
    margin: 0;
    padding: 12px;
    overflow-x: auto;
}

code {
    font-family: 'Fira Code', monospace;
    font-size: 0.75rem;
    color: #38bdf8;
}

#copy-btn {
    display: block;
    width: 100%;
    margin-top: 8px;
    padding: 8px;
    font-size: 0.85rem;
    font-weight: 600;
    background: #334155;
    color: #f8fafc;
    border: none;
    border-radius: 6px;
    text-align: center;
    cursor: pointer;
    transition: all 0.2s ease;
}

#copy-btn:hover {
    background: #38bdf8;
    color: #0f172a;
}
style.css

HTML

<html>
    <head>
        <title>Google Maps 3D - Camera Position Controller</title>
        <link rel="stylesheet" type="text/css" href="./style.css" />
        <script type="module" src="./index.js"></script>
        <!-- prettier-ignore -->
        <script>(g => { var h, a, k, p = "The Google Maps JavaScript API", c = "google", l = "importLibrary", q = "__ib__", m = document, b = window; b = b[c] || (b[c] = {}); var d = b.maps || (b.maps = {}), r = new Set, e = new URLSearchParams, u = () => h || (h = new Promise(async (f, n) => { await (a = m.createElement("script")); e.set("libraries", [...r] + ""); for (k in g) e.set(k.replace(/[A-Z]/g, t => "_" + t[0].toLowerCase()), g[k]); e.set("callback", c + ".maps." + q); a.src = `https://maps.${c}apis.com/maps/api/js?` + e; d[q] = f; a.onerror = () => h = n(Error(p + " could not load.")); a.nonce = m.querySelector("script[nonce]")?.nonce || ""; m.head.append(a) })); d[l] ? console.warn(p + " only loads once. Ignoring:", g) : d[l] = (f, ...n) => r.add(f) && u().then(() => d[l](f, ...n)) })
            ({ key: "AIzaSyA6myHzS10YXdcazAFalmXvDkrYCp5cLc8"});</script>
    </head>

    <body>
        <gmp-map-3d
            center="40.7811,-73.9599,0"
            mode="HYBRID"
            tilt="76"
            range="3270"
            heading="-154"></gmp-map-3d>
        <div id="ui-container">
            <div class="panel">
                <div class="control-group">
                    <label for="heading"
                        >Heading: <span id="heading-val">0</span>&deg;</label
                    >
                    <input
                        type="range"
                        id="heading"
                        name="heading"
                        min="-180"
                        max="180"
                        value="0"
                        step="1" />
                </div>

                <div class="control-group">
                    <label for="tilt"
                        >Tilt: <span id="tilt-val">45</span>&deg;</label
                    >
                    <input
                        type="range"
                        id="tilt"
                        name="tilt"
                        min="0"
                        max="90"
                        value="45"
                        step="1" />
                </div>

                <div class="control-group">
                    <label for="range"
                        >Range: <span id="range-val">1000</span>m</label
                    >
                    <input
                        type="range"
                        id="range"
                        name="range"
                        min="100"
                        max="10000"
                        value="1000"
                        step="100" />
                </div>

                <div class="control-group row">
                    <div class="col">
                        <label for="lat">Latitude</label>
                        <input
                            type="number"
                            id="lat"
                            name="lat"
                            min="-90"
                            max="90"
                            value="40.7040"
                            step="0.0001" />
                    </div>
                    <div class="col">
                        <label for="lng">Longitude</label>
                        <input
                            type="number"
                            id="lng"
                            name="lng"
                            min="-180"
                            max="180"
                            value="-74.0180"
                            step="0.0001" />
                    </div>
                </div>

                <div class="control-group">
                    <label for="altitude"
                        >Altitude: <span id="altitude-val">30</span>m</label
                    >
                    <input
                        type="range"
                        id="altitude"
                        name="altitude"
                        min="0"
                        max="5000"
                        value="30"
                        step="10" />
                </div>

                <div class="control-group">
                    <label for="fov"
                        >FOV: <span id="fov-val">35</span>&deg;</label
                    >
                    <input
                        type="range"
                        id="fov"
                        name="fov"
                        min="5"
                        max="80"
                        value="35"
                        step="1" />
                </div>

                <div class="control-group">
                    <label for="roll"
                        >Roll: <span id="roll-val">0</span>&deg;</label
                    >
                    <input
                        type="range"
                        id="roll"
                        name="roll"
                        min="-180"
                        max="180"
                        value="0"
                        step="1" />
                </div>

                <div class="status-group">
                    <div class="code-box">
                        <pre><code id="generated-code"></code></pre>
                    </div>
                    <button id="copy-btn">Copy HTML</button>
                </div>
            </div>
        </div>
    </body>
</html>index.html

試用範例

JSFiddle.net

控制攝影機位置 透過集合功能整理內容 你可以依據偏好儲存及分類內容。

查看完整範例原始碼

TypeScript

JavaScript

CSS

HTML

試用範例

視野和範圍

查看完整範例原始碼

TypeScript

JavaScript

CSS

HTML

試用範例

控制攝影機位置
