Projections

Earth Engine is designed so that you rarely have to worry about map projections when doing computations. As with scale, the projection in which computations take place is determined on a "pull" basis. Specifically, inputs are requested in the output projection. The output may be determined from a function parameter (e.g. crs), the Map in the Code Editor (which has a maps mercator (EPSG:3857) projection), or with a reproject() call. When you display images in the Code Editor, inputs are requested in maps mercator. Consider the following simple operation on a MODIS image, which has a sinusoidal projection:

// The input image has a SR-ORG:6974 (sinusoidal) projection.
var image = ee.Image('MODIS/MOD13A1/MOD13A1_005_2014_05_09').select(0);

// Normalize the image and add it to the map.
var rescaled = image.unitScale(-2000, 10000);
var visParams = {min: 0.15, max: 0.7};
Map.addLayer(rescaled, visParams, 'Rescaled');


The order of operations for this code sample is diagrammed in Figure 1. Note that the projection of the input is determined by the output, specifically the maps mercator projection of the map display in the Code Editor. This projection propagates back through the sequence of operations such that the inputs are requested in maps mercator, at a scale determined by the zoom level of the map.

projection
Figure 1. Flow chart of operations corresponding to the display of a MODIS image in the Code Editor map. Projections (left side of flow chart) of each operation are determined from the output. Curved lines indicate the flow of information to the reprojection: specifically, the output projection and scale.

In Earth Engine, projections are specified by a Coordinate Reference System (CRS or the crs parameter of many methods). You can check the projection of an image by calling projection() on it:

var image = ee.Image('LANDSAT/LC08/C01/T1/LC08_044034_20140318').select(0);
print('Projection, crs, and crs_transform:', image.projection());
print('Scale in meters:', image.projection().nominalScale());


Note that by calling nominalScale() on the ee.Projection returned by projection(), you can determine the native resolution of the image. The native resolution is the nominal pixel scale in meters of the lowest level of the image pyramid. Because each band of an image can have a different scale and/or projection, if you call projection() on an image with at least one band that doesn't have the same projection as the others, you may see an error like:

Unlike scale, unless you need your computation to occur in a specific projection, there is generally no need to specify a projection. Only for output that's ambiguous will Earth Engine require you to specify a projection or scale. Ambiguity can result from compositing datasets with different projections. An image which is a composite or mosaic of input images with different projections will have the default projection, which is WGS84 with 1-degree scale. For example:

var collection = ee.ImageCollection('LANDSAT/LC08/C01/T1');
var mosaic = collection.mosaic();
print(mosaic.projection());


If you try to use an image like this in a computation, you may see an error like:

Generally, an aggregation at 1-degree scale is not desired or intended, so Earth Engine gives this friendly reminder to provide a complete specification for the output.

Reprojecting

You can force operations to be performed in a specific projection with the reproject() method. Using reproject() results in the inputs being requested in the projection specified in the reproject() call. Computations in your code before the reproject() call will be done in the specified projection.

There are several reasons you should avoid using reproject() unless you absolutely need to. Suppose, for example, you reproject something and add it to the map. If the scale you specified in the reproject() call is much smaller than the zoom level of the map, Earth Engine will request all the inputs at very small scale, over a very wide spatial extent. This can result in much too much data being requested at once and lead to an error.

If the eventual output is in a different projection from that specified in the reproject() call, that will result in another reprojection. This is another reason to be cautious about using reproject() in your code. Consider the following example, which forces the MODIS image to first be reprojected to WGS84, then reprojected to maps mercator for display in the Code Editor map:

// The input image has a SR-ORG:6974 (sinusoidal) projection.
var image = ee.Image('MODIS/MOD13A1/MOD13A1_005_2014_05_09').select(0);

// Operations *before* the reproject call will be done in the projection
// specified by reproject().  The output results in another reprojection.
var reprojected = image
    .unitScale(-2000, 10000)
    .reproject('EPSG:4326', null, 500);
Map.addLayer(reprojected, visParams, 'Reprojected');

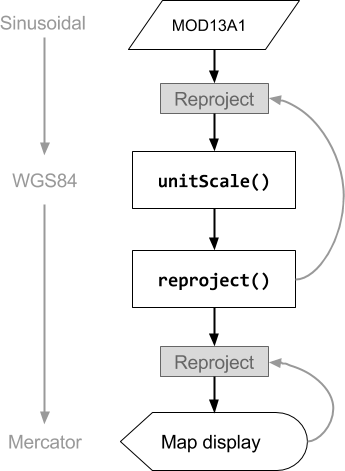

Figure 2 diagrams the flow of operations correspoding to this simple reprojection example. Note that the first reprojection is explicit, as specified in the reproject() call. The second reprojection is implicit, performed by Earth Engine automatically in order to display the result on the map. Also observe that the information about what projection to use propagates back from the request to the input.

reprojection
Figure 2. Flow chart of operations corresponding to the reprojection of a MODIS image in the Code Editor map. Curved lines indicate the flow of information to the reprojections: specifically, the output projection and scale.
